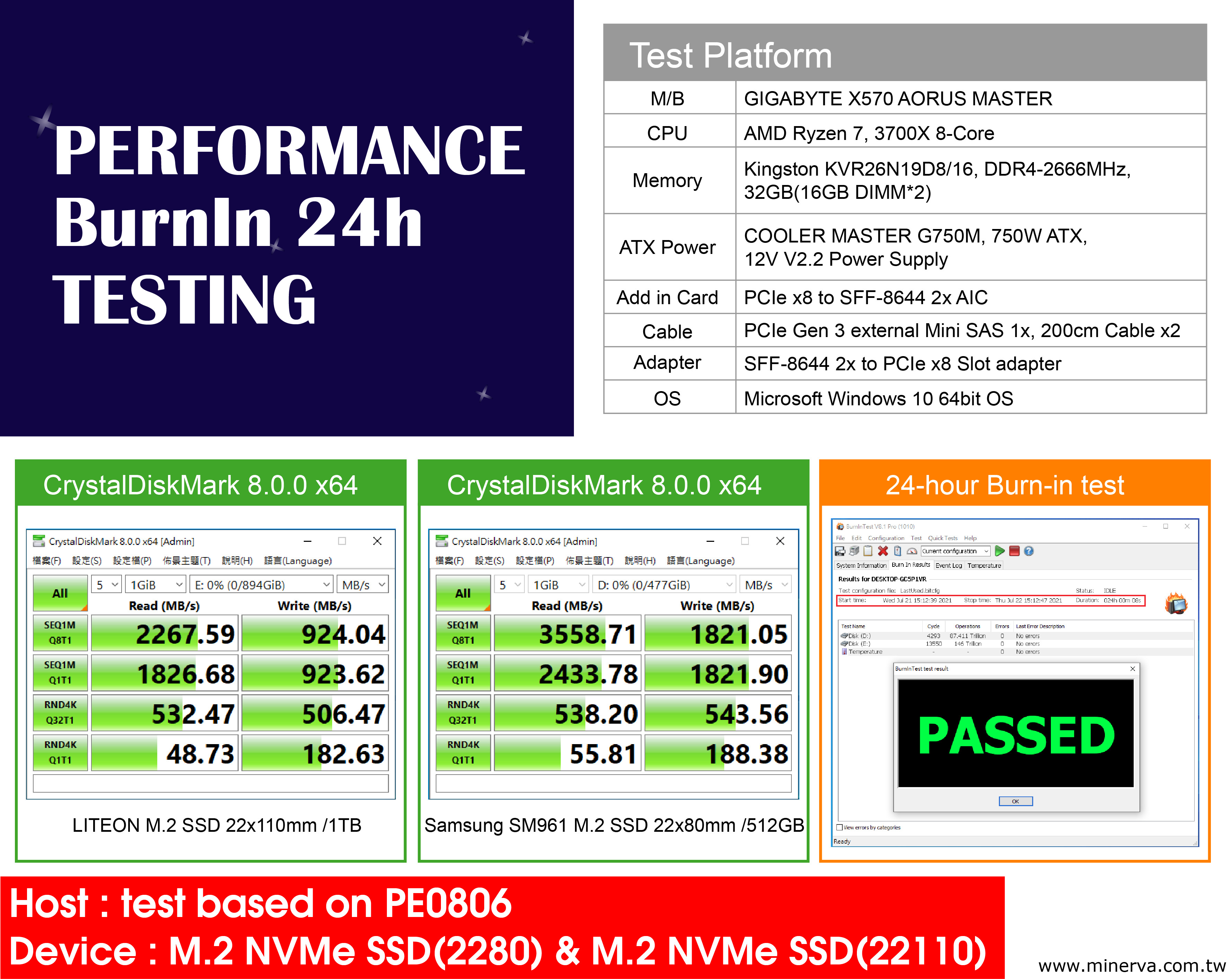

Test report
2D drawing

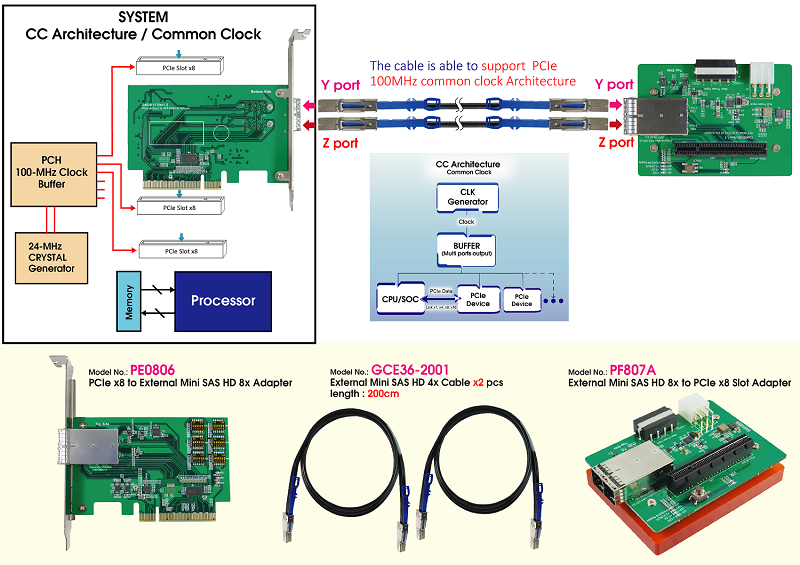

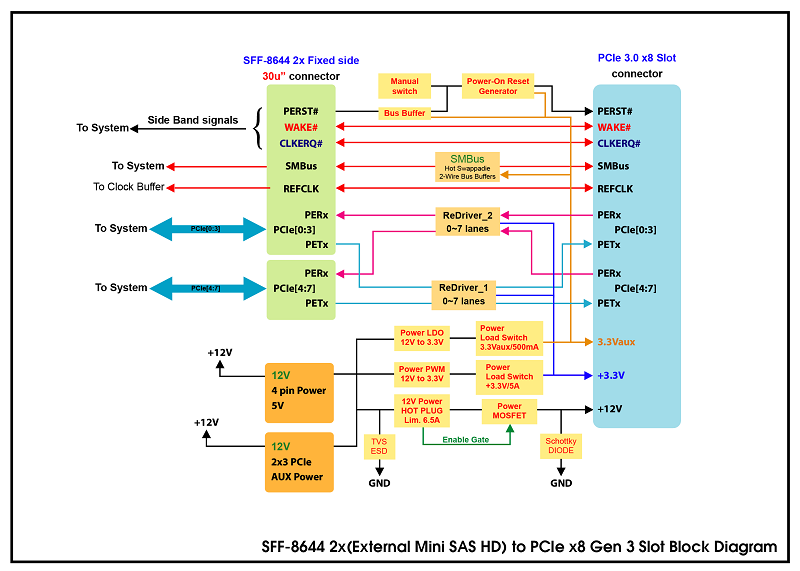

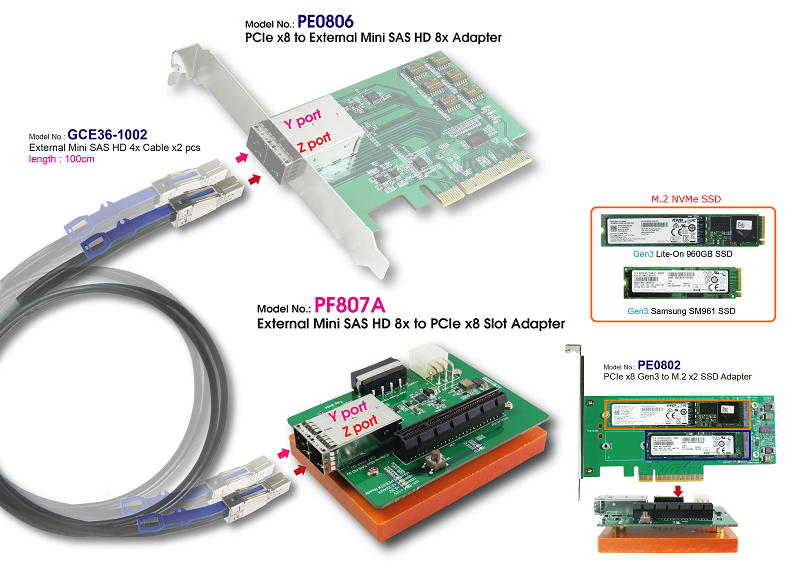

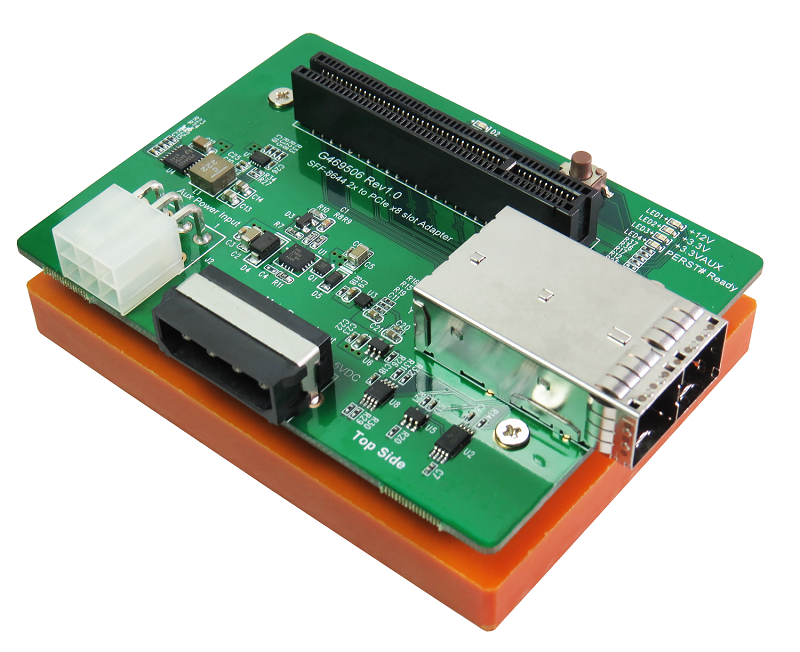

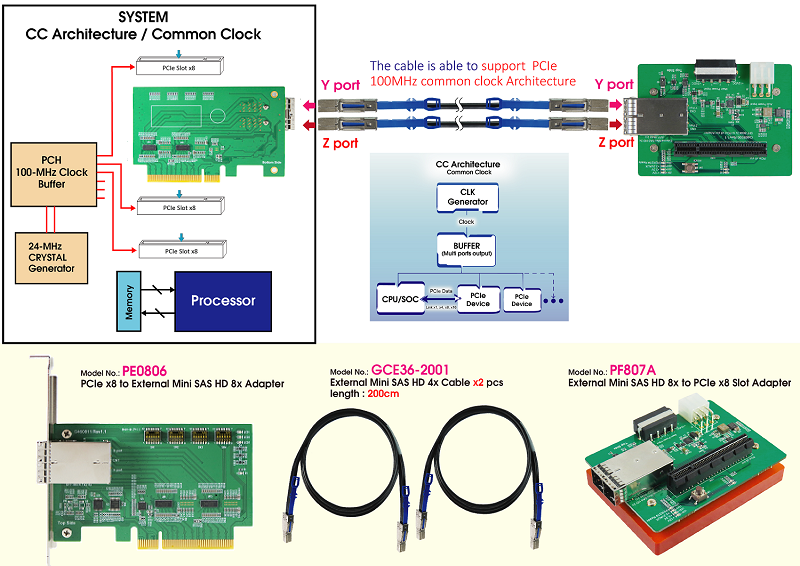

- External miniSAS 2x(SFF-8644) to PCIe x8 convert

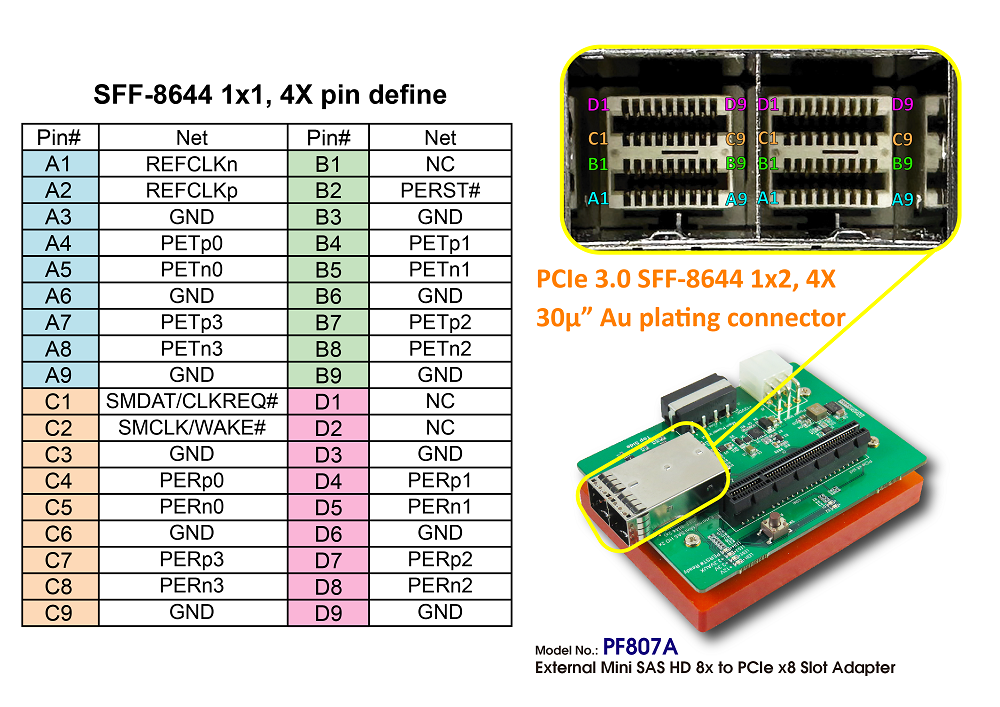

- Built-in SFF-8644 2x connector
- Built-in PCIe x8 Slot
- Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- ◆ Back-to-Back (B2B) FET Operation
- PWM synchronous 12V to 3.3V buck converter Power
- ◆ 4A maximum output current
- ◆ Over Current Protection
- ◆ Under Voltage Protection
- ◆ Under voltage lock out protection (UVLO) monitors
- ◆ Thermal shutdown protection
- ◆ ESD Human Body Mode(HBM)/2KV
- Built-in 3.3V Power Load Switch for PCIe +3.3V, 4A
- 12V to 3.3V LDO buck converter Power
- Built-in 3.3V Power Load Switch for PCIe 3.3Vaux, 500mA
- Built-in SMBus Hot Swappable 2-Wire Bus Buffer
- LED1 PCIe +3.3V power ready
- LED3 PCIe 3.3Vaux power ready
- LED4 PCIe +3.3 power ready
