Datasheet

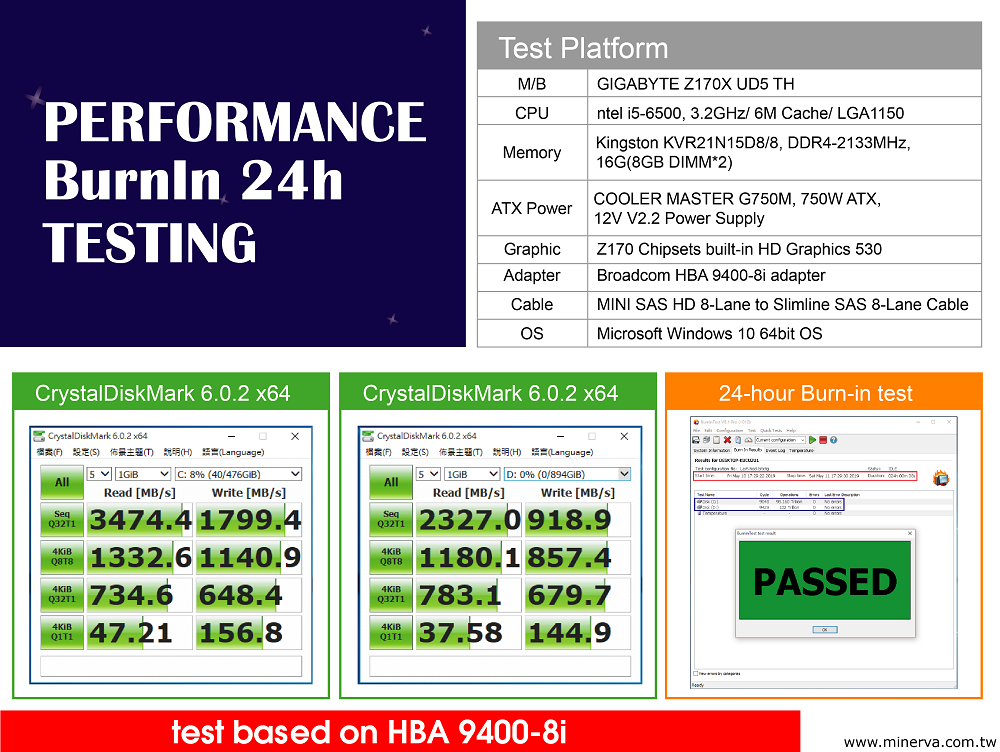

Test report - Test base on Broadcom HBA 9400-8i storage adapter (M.2 MVNe SSD)
Test report - Test base on Broadcom HBA 9400-8i storage adapter (M.3 NF1 SSD)
2D Drawing
- Built-in SFF-8654 8x (Slimline SAS) Female connector, pin out defined by PCIe
- Built-in M.2 M-key Female connector, pin out defined by PCIe
- Complinat with NVM Express 1.0a
- Supports PCI Express Base Specification Rev 3.1
- Compliant with PCI Express M.2 Specification Version 1.1
- Compliant with Samsung M.3 Specification Ver. 0.4
- Supports SSD_Form_Factor_Version1_a
- Compliant with SFF-8654 Specification Rev 1.2
- Compliant with SFF-9402 Specification Rev 1.0
- Compliant with Broadcom MegaRaid and HBA Tri-mode Storage Adapter
