Datasheet

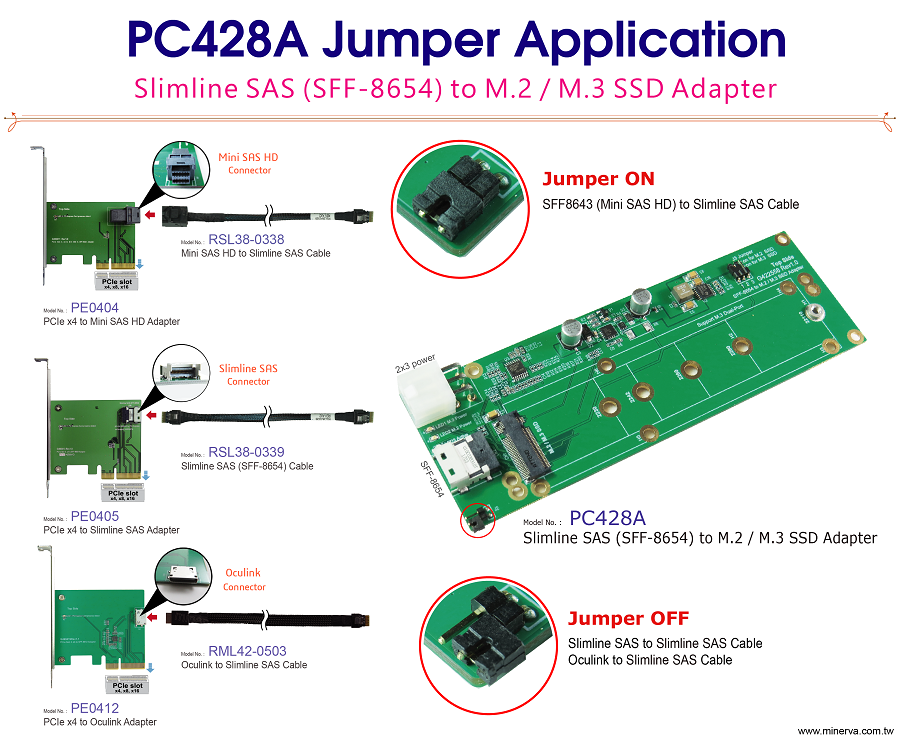

Test report with SFF-8611 to SFF-8654 Cable
Test report with SFF-8643 to SFF-8654 Cable
Test report with SFF-8654 to SFF-8654 Cable
2D drawing
Host : PE0405
Test report with M.3 NF1 SSD
Host : PE2402
Test report with M.3 NF1 SSD

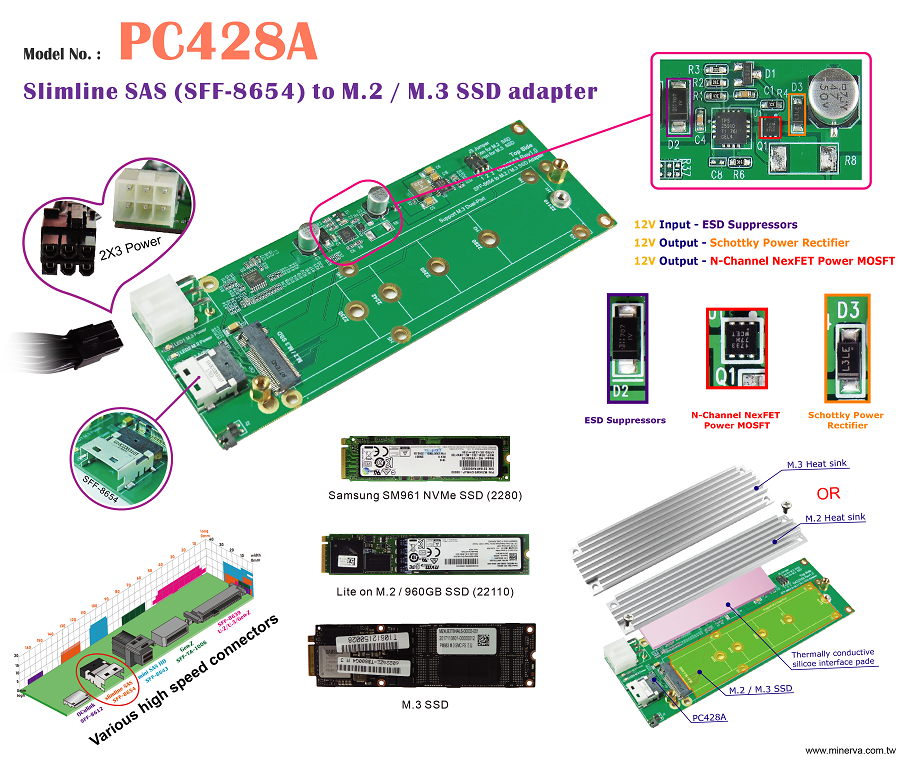

- Build in Hot Plug power IC protection for M.2, M.3 SSD

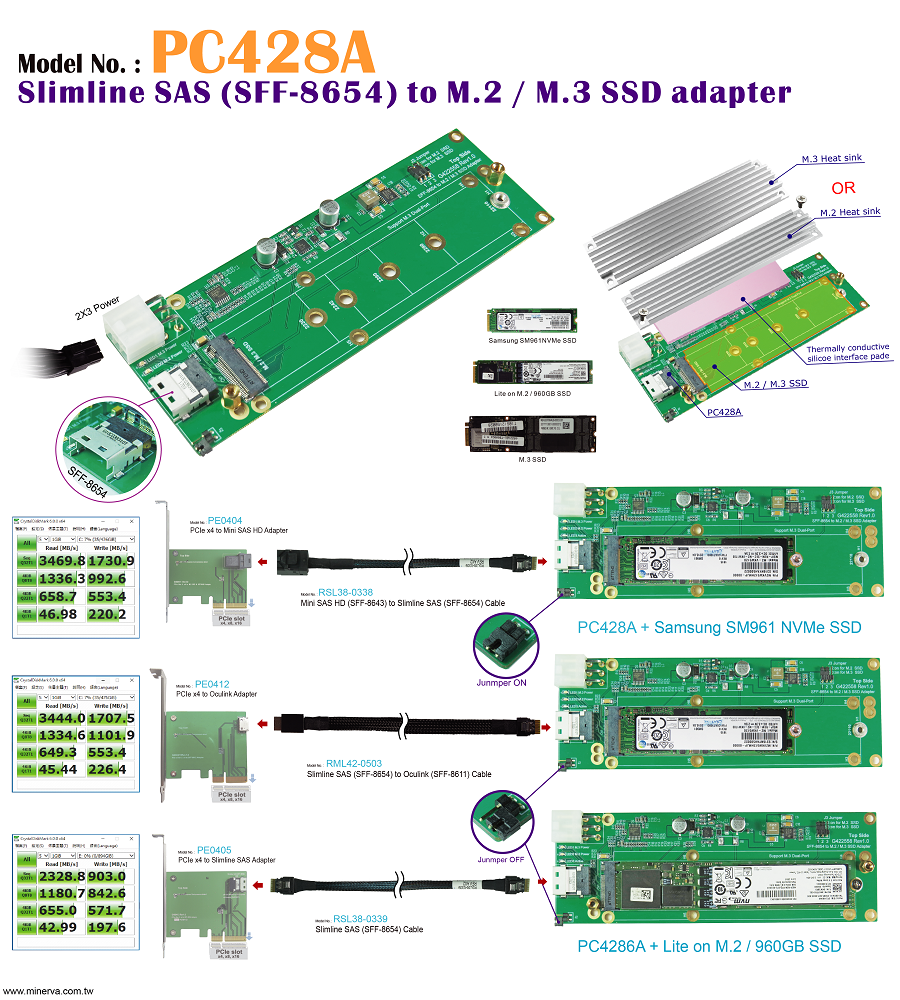

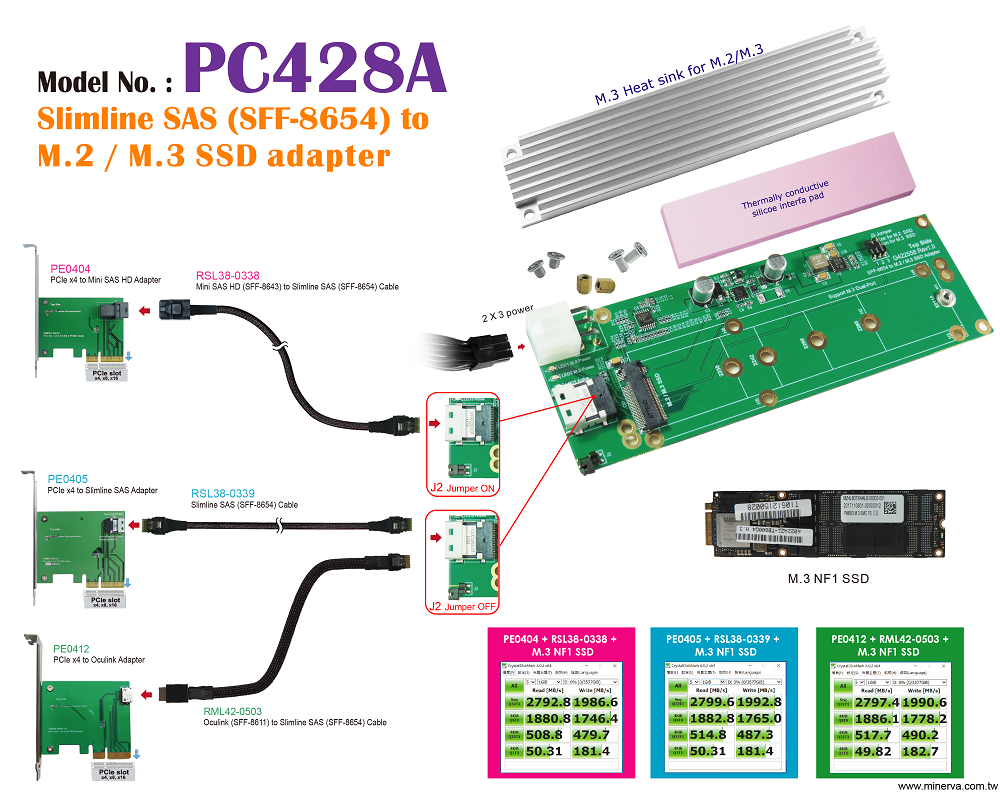

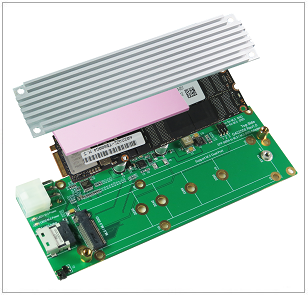

- SFF-8654 Slimline SAS to M.2, M.3 convert
- Build in SFF-8654 connector, pin-out defined by PCIe

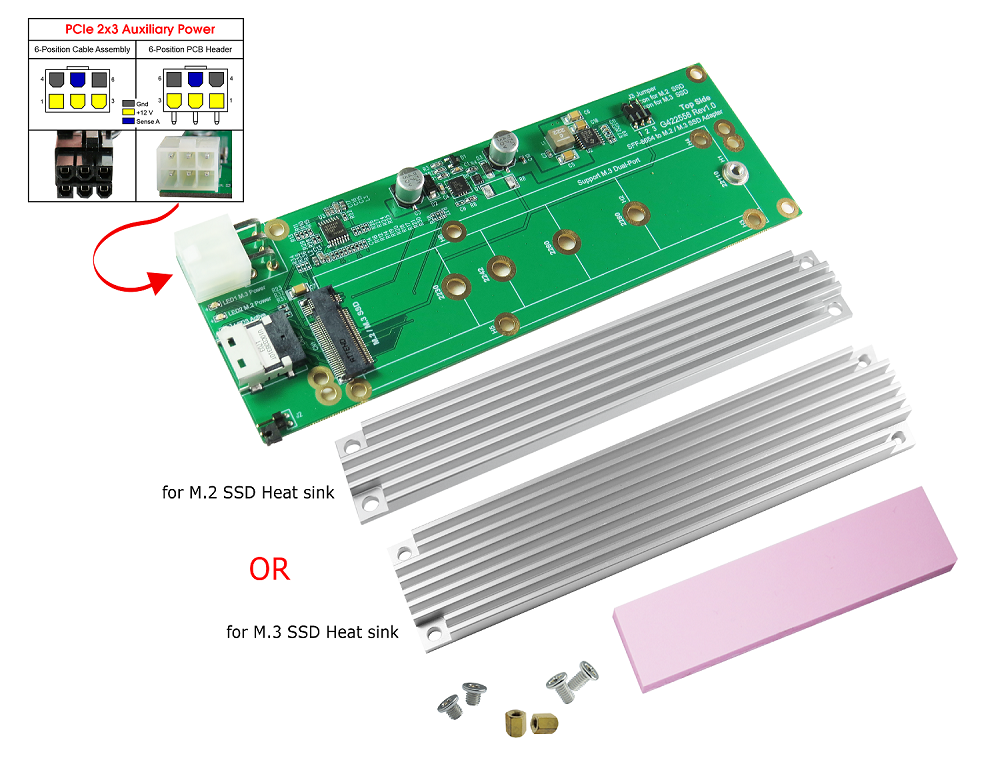

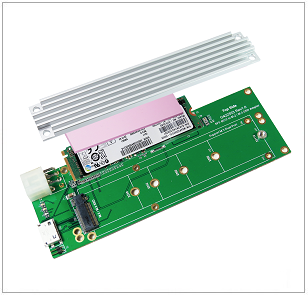

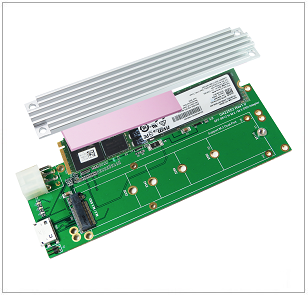

- Build in M.2 M-key connector, pin-out defined by PCIe
- LED 1 Green LED on indicates M.3 NF1 SSD power ready
- LED 2 Green LED on M.2 SSD power ready
- LED 3 Red LED Blinking indicates SSD active status
