Datasheet

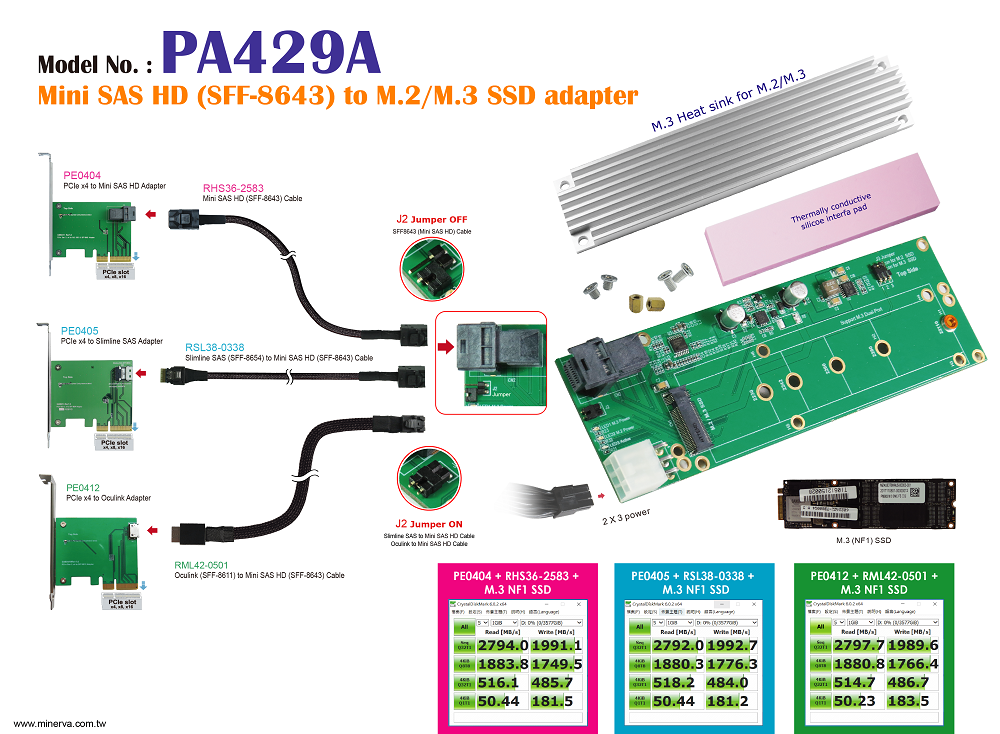

Test report with SFF-8643 to SFF-8643 Cable
Test report with SFF-8643 to SFF-8654 Cable
Host : PE0404

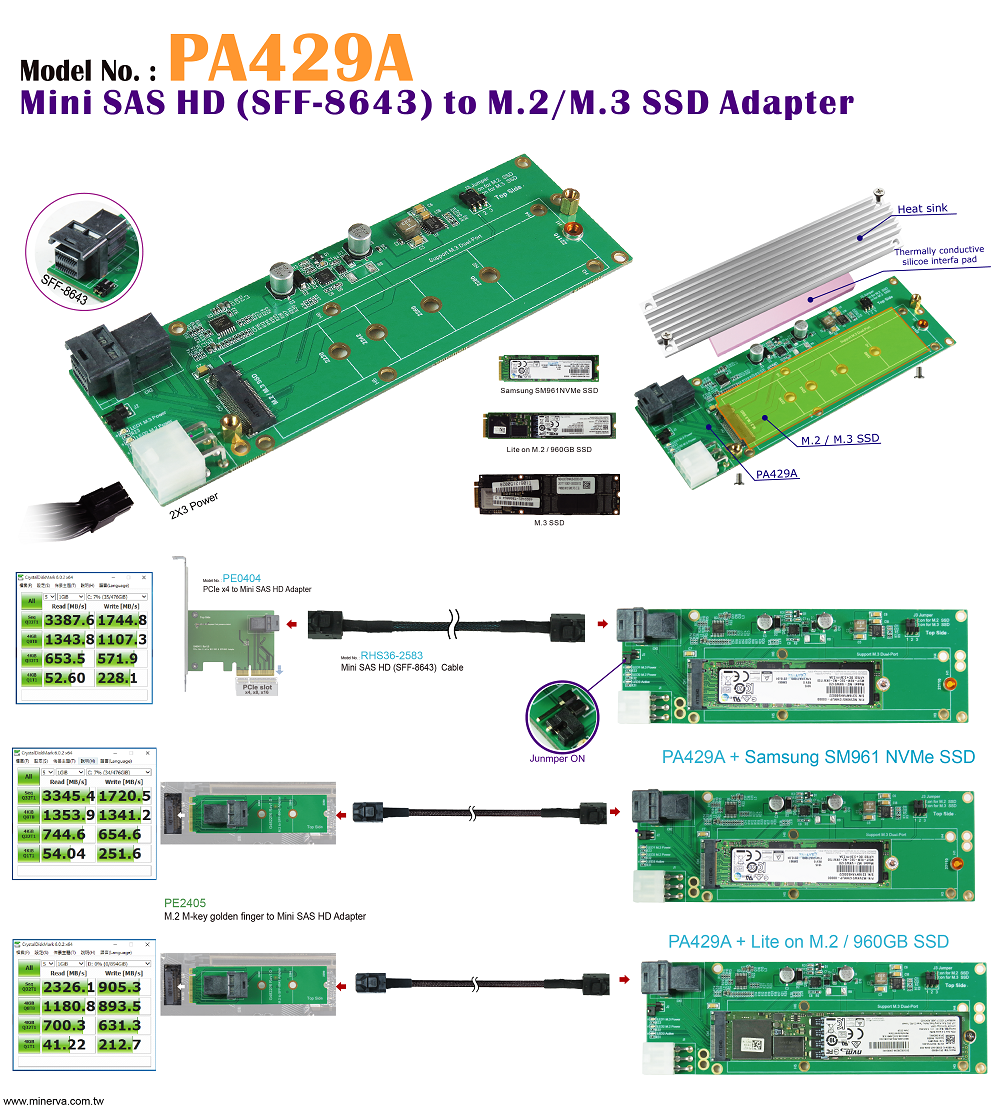

Test report with M.3 NF1 SSD
Host : PE2405
Test report with M.3 NF1 SSD
2D drawing

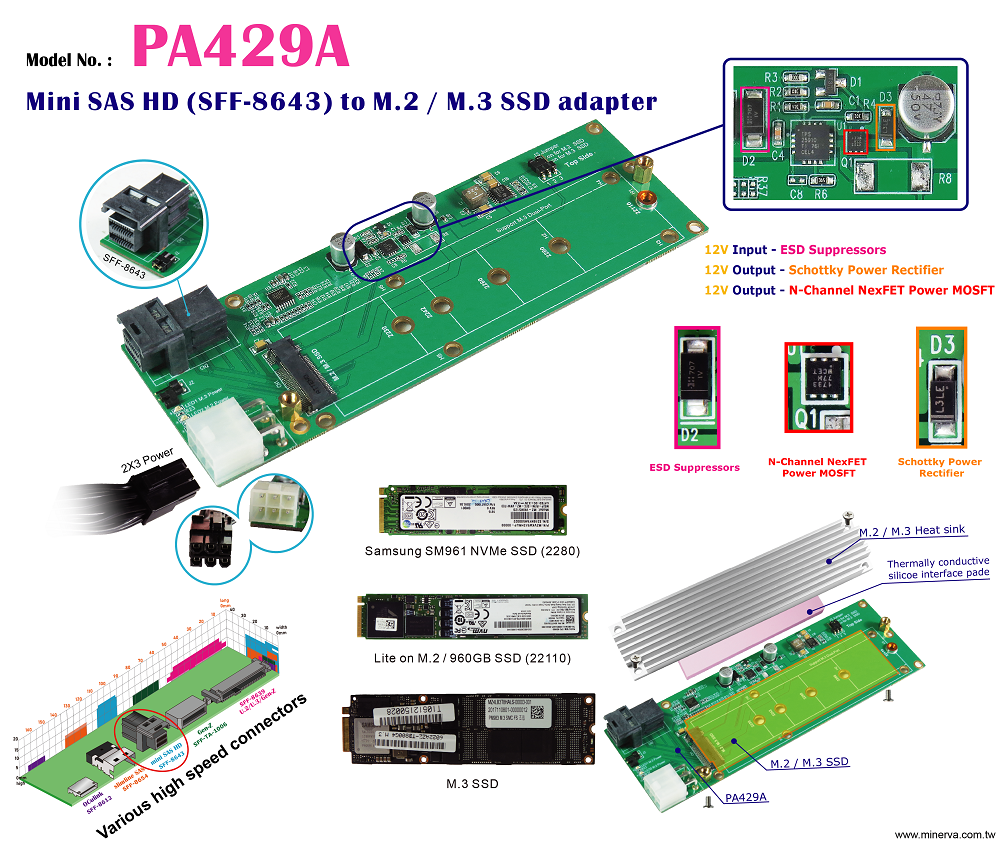

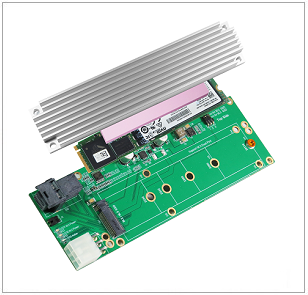

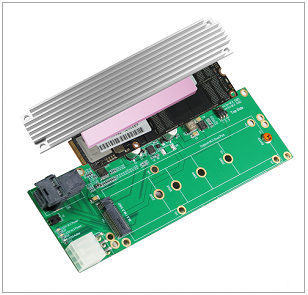

- Build in Hot Plug power IC protection for M.2, M.3 SSD
- SFF-8643 mini SAS HD to M.2, M.3 convert
- Build in SFF-8643 connector, pin-out defined by PCIe
- Build in M.2 M-key connector, pin-out defined by PCIe
- LED 1 Green LED on indicates M.3 NF1 SSD power ready
- LED 2 Green LED on M.2 SSD power ready
- LED 3 Red LED Blinking indicates SSD active status
