specifications

PDF

Datasheet

PDF

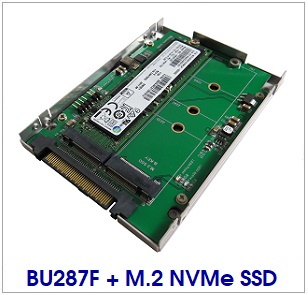

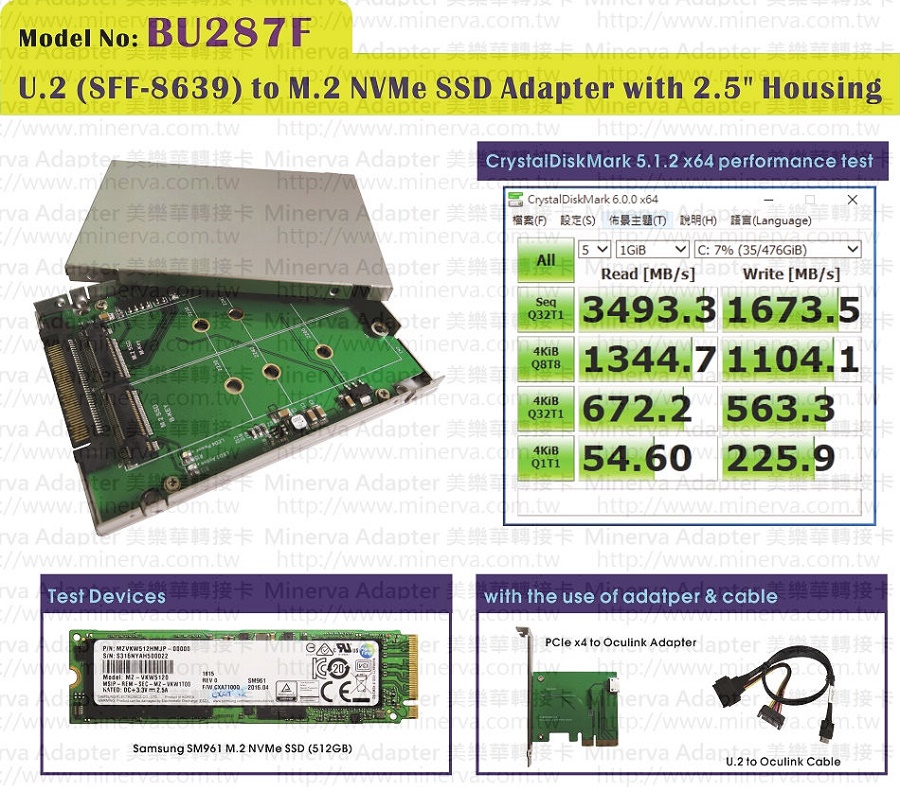

Test report - Samsung SM961 M.2 NVMe 512GB SSD

PDF

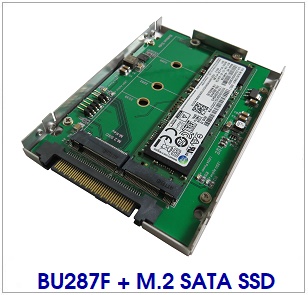

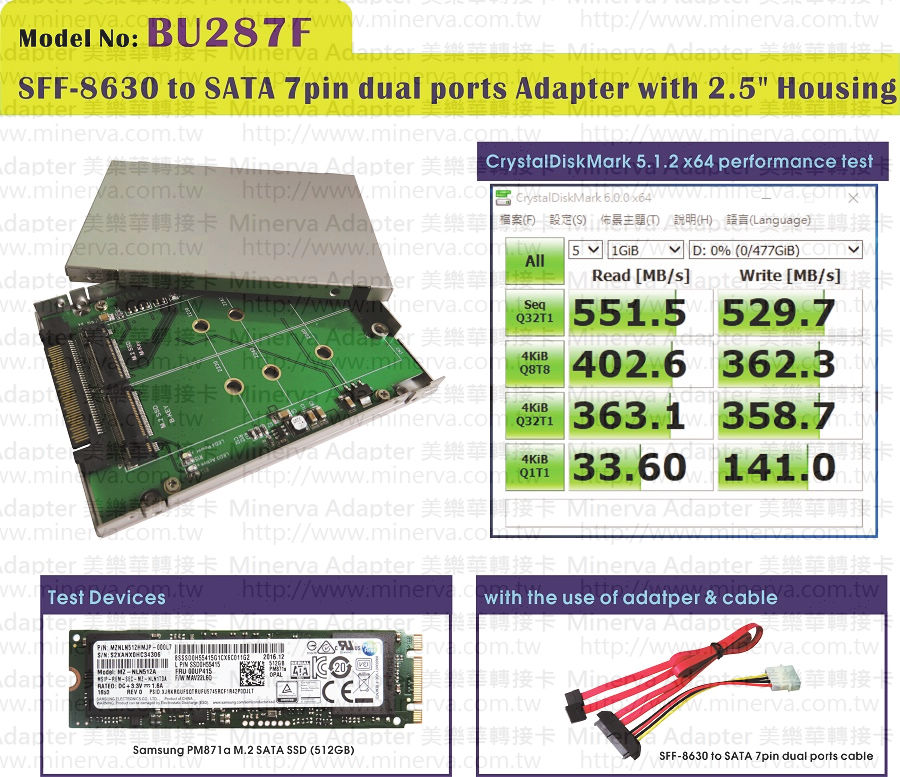

Test report - Samsung PA871a M.2 SATA 512GB SSD









specifications





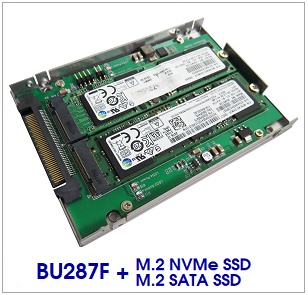

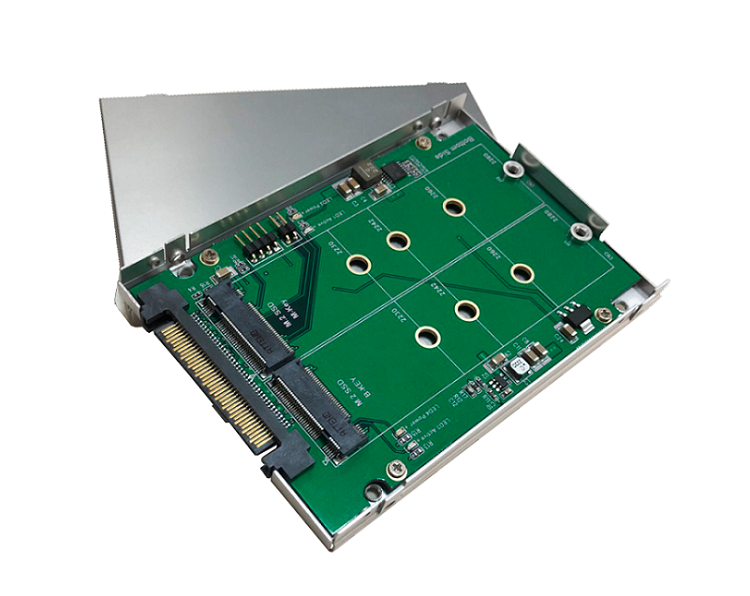

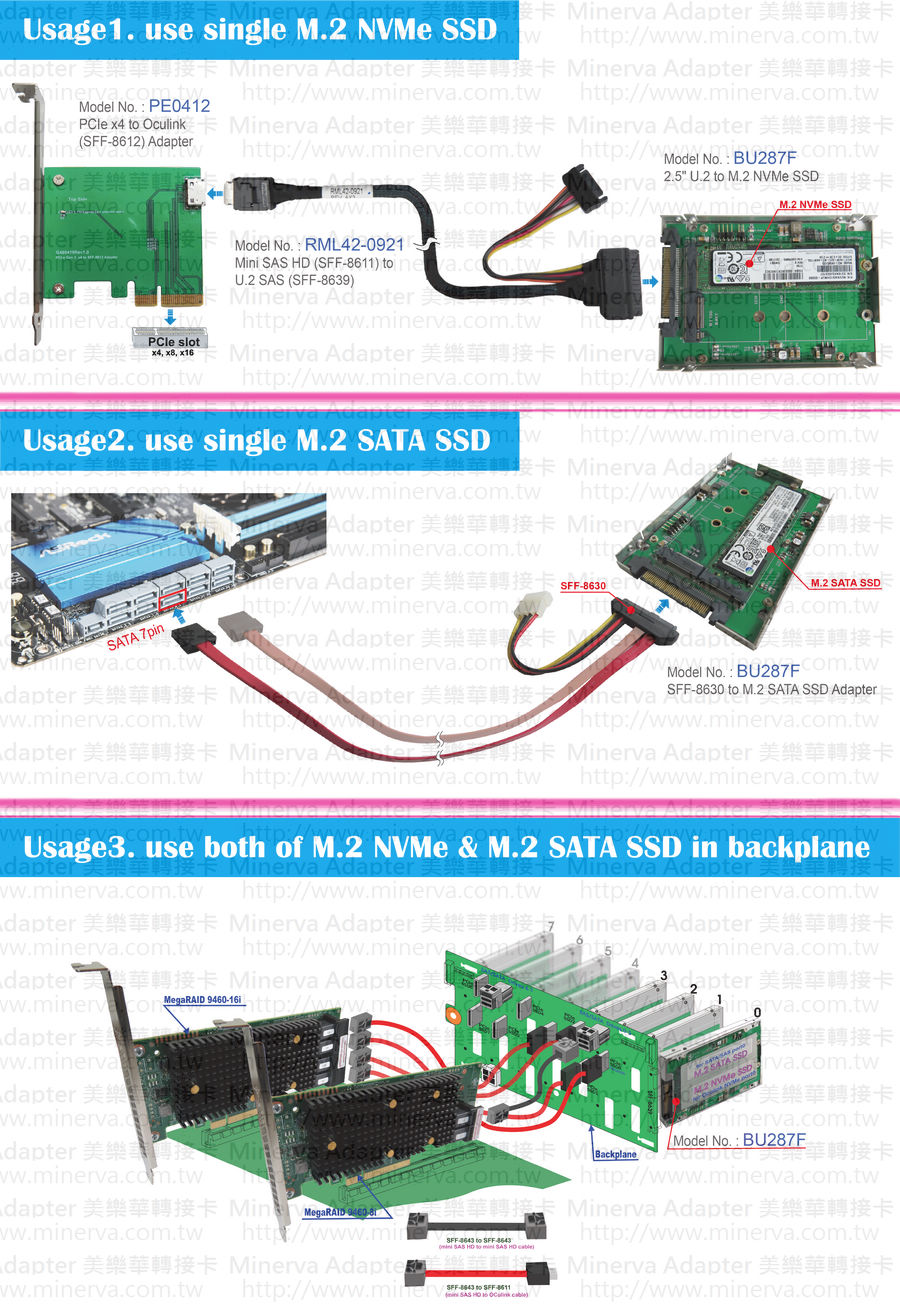

  • Build in SFF-8639 male connector
  • Build in M.2 M-key 1-port and M.2 B-key 1-port connector
  • PWM synchronous buck Power IC for M.2 NVMe SSD
  • 4A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • PWM synchronous buck Power IC for M.2 SATA SSD
  • 3A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • D1, D4 Green LED on indicates SSD Power ready
  • D2, D3 Red LED Blinking indicates SSD active status
