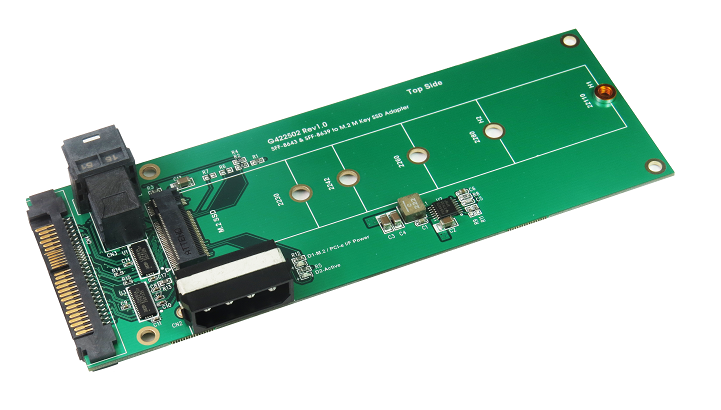

- M.2 PCIe to U.2(SFF-8639) convert
- M.2 PCIe to SFF-8643) convert
- Build in M.2 M-key Female connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- Build in SFF-8643 connector, pin-out defined by PCIe
- PWM synchronous buck converter Power IC
※4A maximum output current
※Short circuit protection
※In-rush current suppression
※Thermal shutdown protection
※ESD HBM (Human Body Mode)/2KV
- D1 Green LED on indicates M.2 SSD power ready
- D2 Red LED Blinking indicates M.2 SSD active status
- Compliant with NVM Express 1.0a
- Support PCI Express Base Specification Rev 3.0
- Support SSD_Form_Factor_Version1_a
- Compliant with PCI Express M.2 Specification Version 1.0
- Compliant with SFF-8639 Specification Rev 2.0
- Compliant with SFF-8643 Specification Rev 3.5
