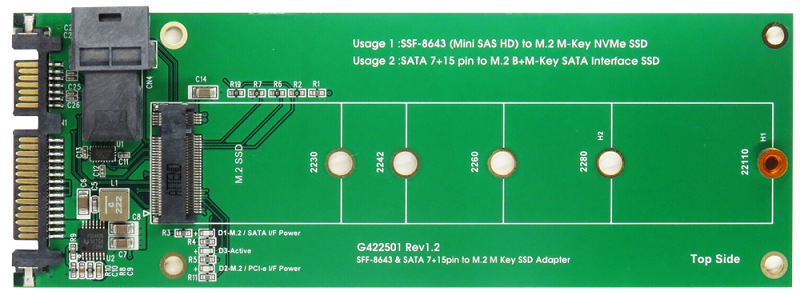

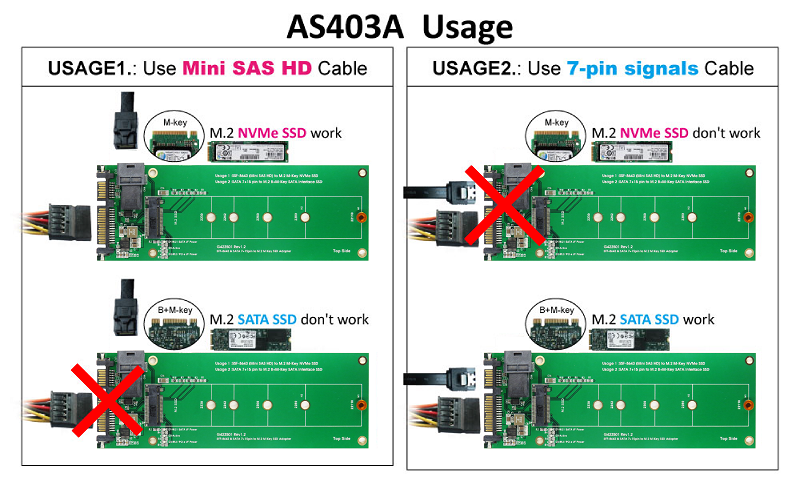

- M.2 (PCIe Interface) to Mini SAS HD(SFF-8643)PCI-e convert
- M.2 (SATA Interface) to SATA III/6Gbps convert
- Build in Mini SAS HD(SFF-8643) Female connector
- Build in SATA 7+15pin connector
- Build in M.2 (NGFF) M-key Female connector
- D1 on indicates M.2 / SATA III device power ready
- D2 on indicates M.2 / PCI-e 4 Lanes device power ready
- D3 indicates M.2 SSD active status
- NVM ExpressTM 1.0
- Support SATA Reversion 3.2
- PCI Express M.2 Spec. Revision 0.9, Version 1.0
- PCI Express® Base Specification Rev 3.0
- PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
- SFF-8643 Specification Rev 3.5
- PWM synchronous buck converter Power IC for M.2 SSD
※ 4A maximum output current
※output overcurrent protection (OCP)
※Over/Under Voltage Protection
※Undervoltage lock out protection (UVLO)
※Thermal Shutdown
