CB963Fx9

specifications





specifications

PDF

Datasheet

PDF

Test report









specifications

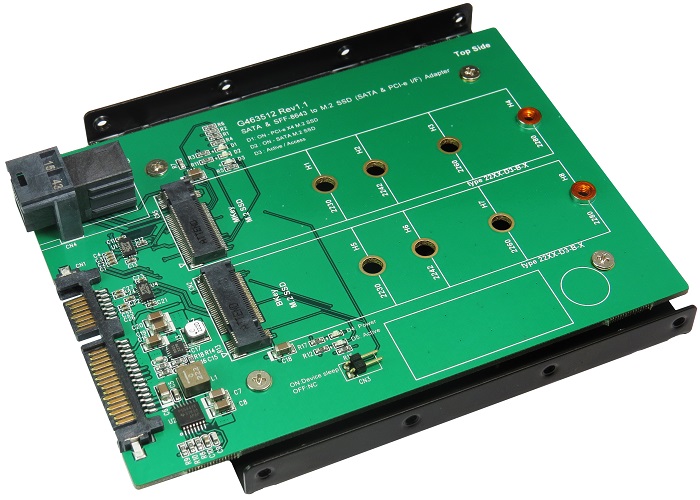

M.2 (PCI-e I/F) to Mini SAS HD(SFF-8643)PCI-e convert
M.2 (SATA I/F) to SATA III convert
Build in Mini SAS HD(SFF-8643) Female connector
Build in SATA 7+15pin connector
Build in M.2 (NGFF) M-key Female connector
Build in M.2 (NGFF) B-key Female connector
D1 on indicates M.2 / PCI-e 4 Lanes device power OK
D2 on indicates M.2 / SATA III device power OK
D1 / off & D2 / off indicates M.2 / PCI-e 2 Lanes device power OK
D3 indicates M.2 (PCI-e I/F) active status



Compliance

NVM ExpressTM 1.0
Support SATA Reversion 3.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express® Base Specification Rev 3.0
PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
SFF-8643 Specification Rev 3.5
Build in M.2 (NGFF) B-key Female connector
D4 on indicates M.2 / SATA III device power OK
D5 indicates M.2 (SATA I/F)active status



Power

PWM synchronous buck converter Power IC for M.2(PCIe I/F) Device
※4A maximum output current
PWM synchronous buck converter Power IC for M.2(SATA I/F) Device
※3A maximum output current

support storage device
