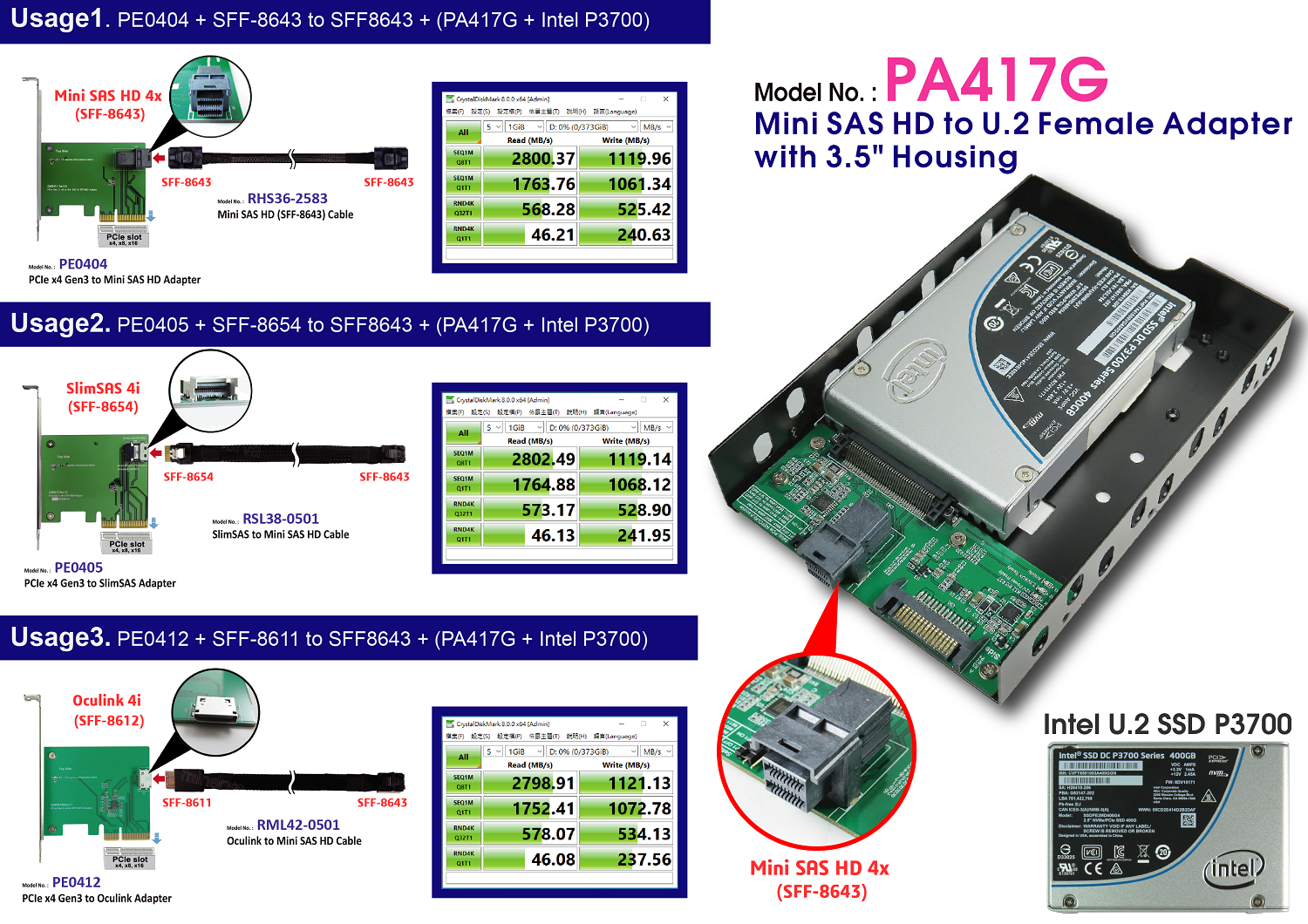

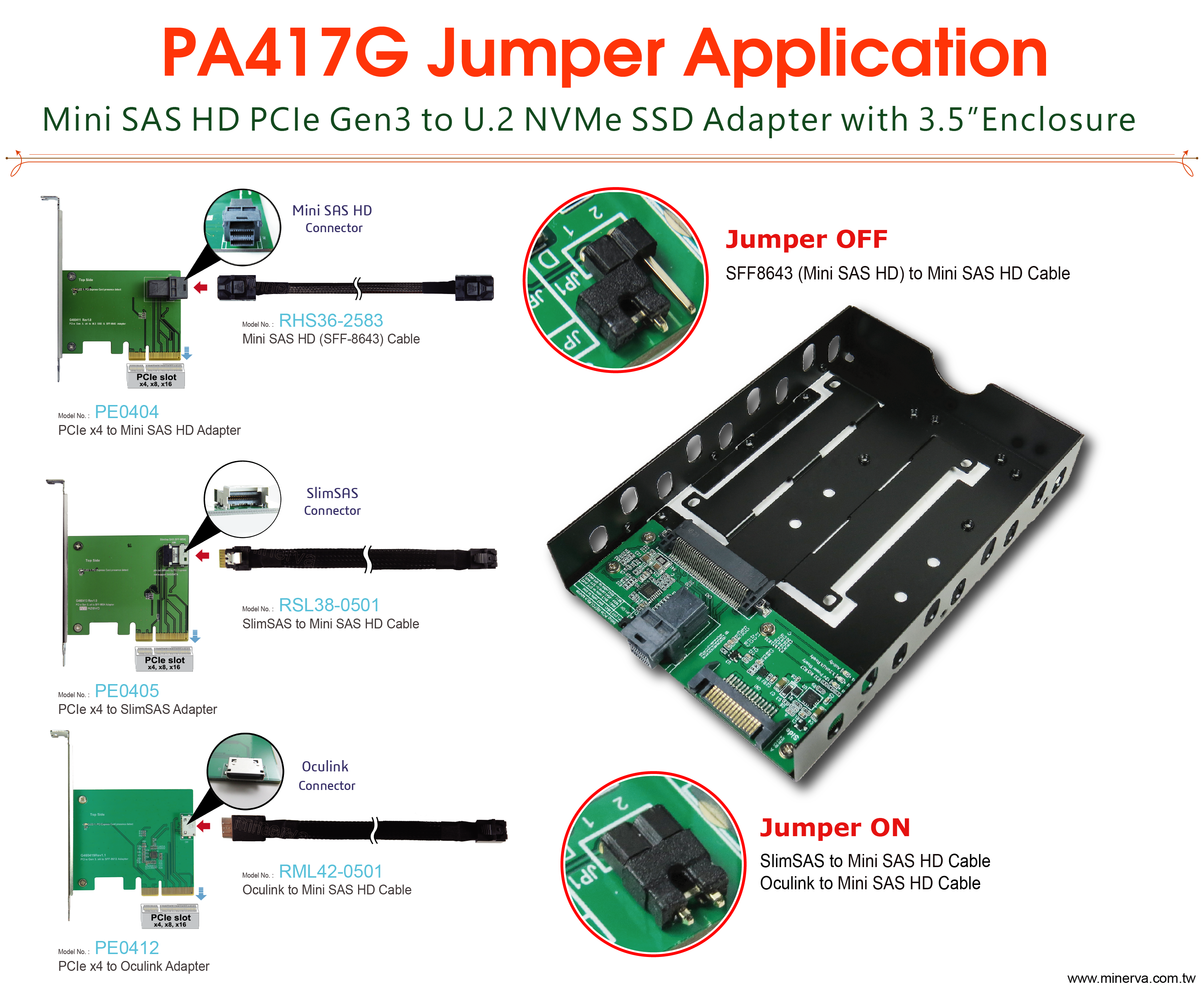

Test report with Intel P3700 U.2 SSD & Mini SAS HD Cable
Test report with Intel P3700 U.2 SSD & Mini SAS HD to SlimSAS Cable
Test report with Intel P3700 U.2 SSD & Mini SAS HD to OCulink Cabl
PA417G 2D drawing
PA417A(PCB) 2D drawing
- U.2(SFF-8639) to SFF-8643 MINI SAS HD convert

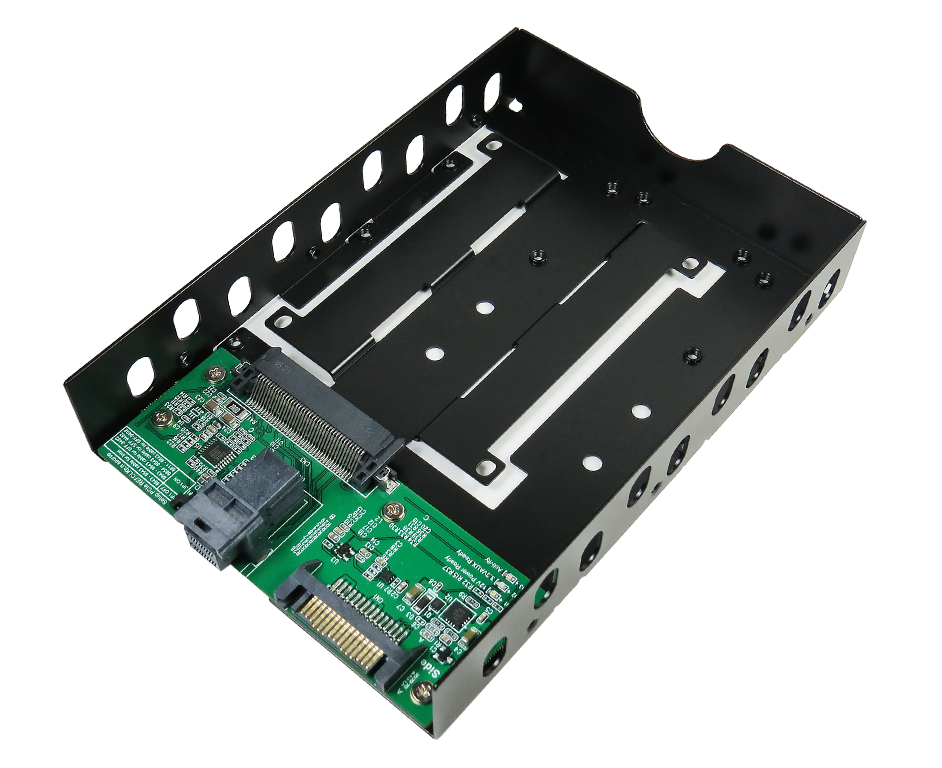

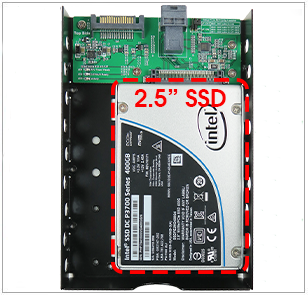

- 2.5” H.D.D. form factor to 3.5” H.D.D form factor convert

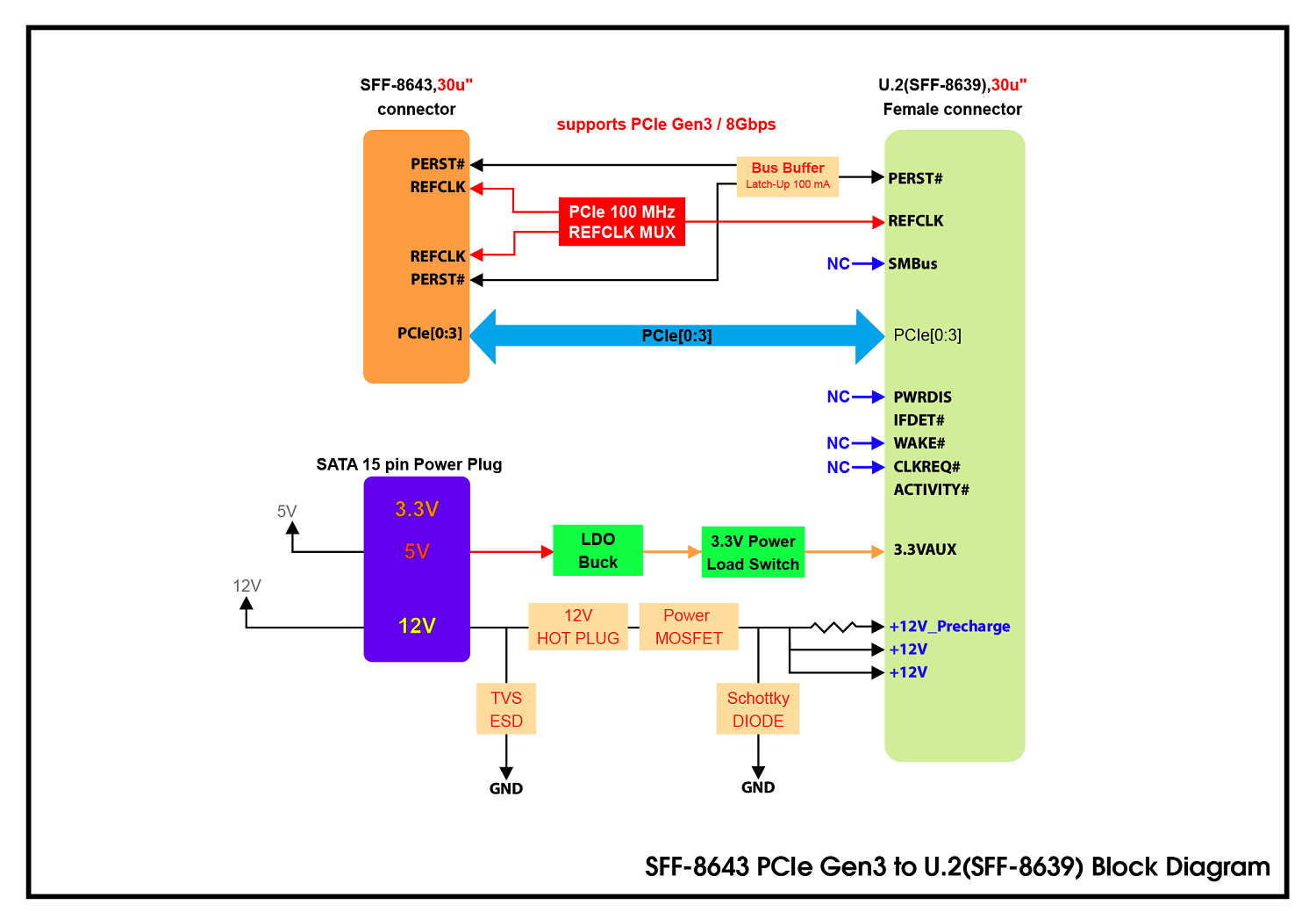

- Build in SATA 15 pin power connector

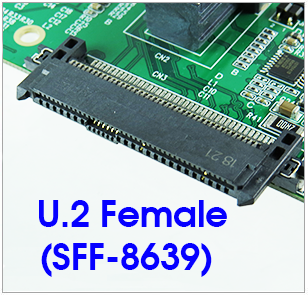

- Build in SFF-8639 connector, pin-out defined by SFF-9402Rev1.0

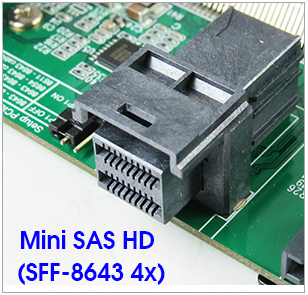

- Build in SFF-8643 connector, pin-out defined by SFF-9402Rev1.0
- Built-in 12V input with 400W TVS(Transient Voltage Suppressor ESD protection
- Built-in 12V Hot Plug Power with eFuse protection for U.2 SSD
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m Ohm
- Built-in 12V output with SCHOTTKY BARRIER Power Rectifier
- Built-in 3.3Vaux load switch power protection
- Built-in PCIe 100MHz clock mux
- LED 2 Red LED on indicates SSD active status
- LED 1 Green LED Blinking indicates 12V power ready
- LED 3 Green LED Blinking indicates 3.3VAUX power ready
