Datasheet

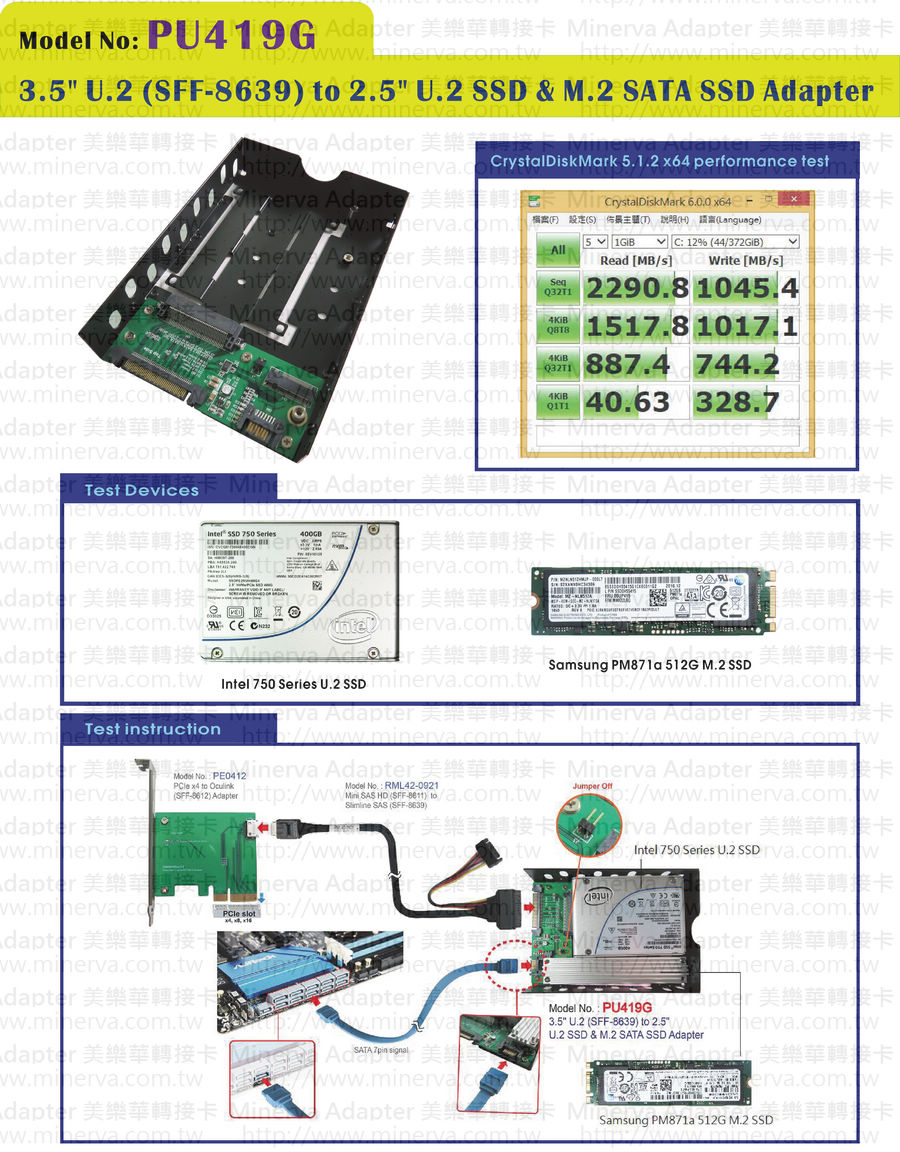

Test report

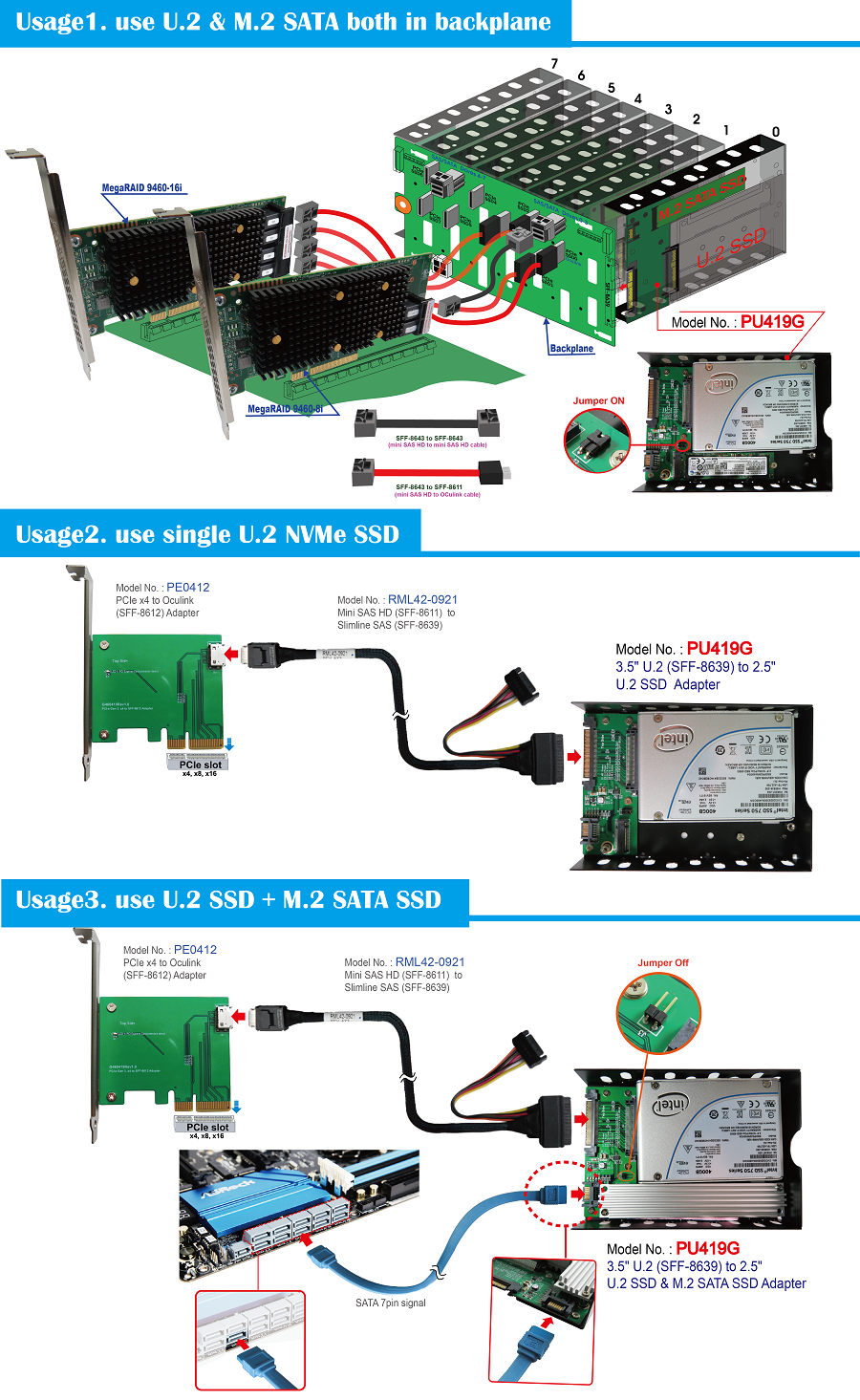

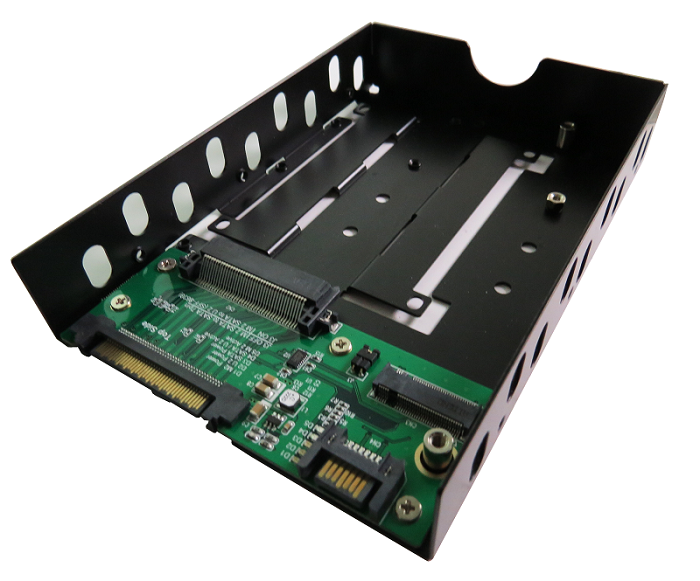

- 2.5” U.2 SSD can mount to 3.5” Drive Caddy U.2 convert
- M.2 SATA to SATA 7-pin convert
- Build in M.2 B-key Female connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- PWM synchronous buck Power IC for M.2 SATA SSD
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- D1 Green LED on indicates M.2 SATA SSD power ready
- D2 Green LED on indicates U.2 NVMe SSD power ready
- D3 Green LED on indicates 2.5” SATA SSD power ready
- D4 RED LED Blinking on indicates U.2 or 2.5” SATA Active
- D5 RED LED Blinking on indicates M.2 SATA SSD Active
