Datasheet

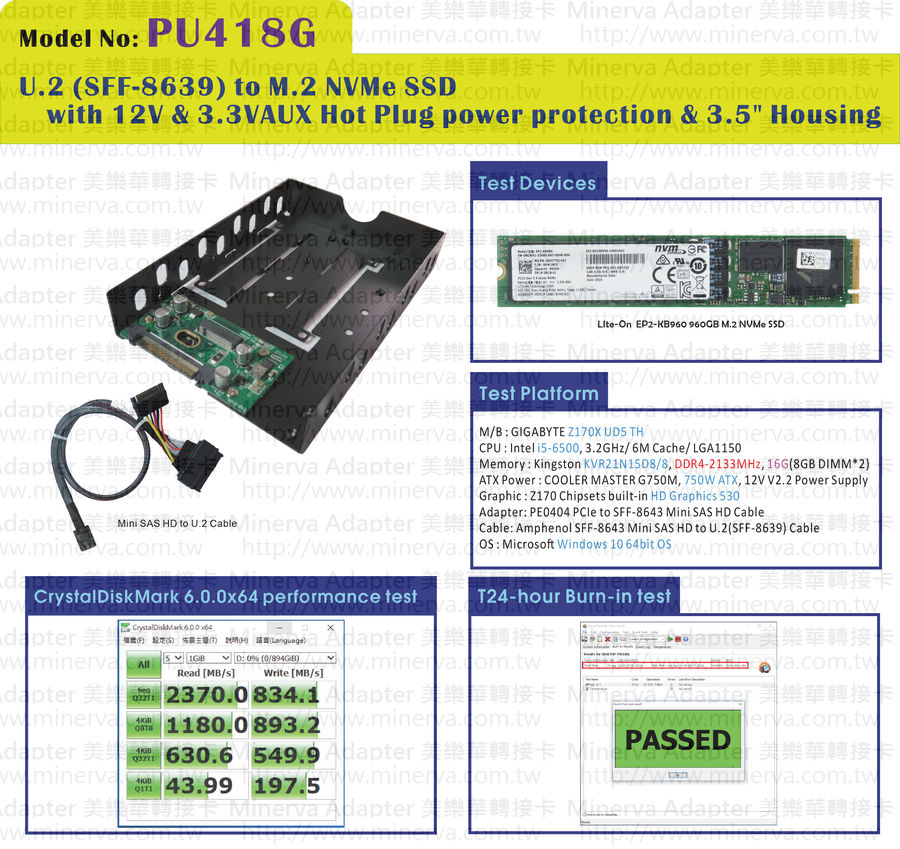

Test report with Lite-On 960GB M.2 NVMe SSD
Test report with Samsung SM961 M.2 NVMe SSD
- M.2 NVMe to U.2(SFF-8639) convert
- M.3 NVMe to U.2(SFF-8639) convert
- Build in M.2 M-key Female connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- 12V Hot Plug and Removal power protected circuit
- 3.3VAux Hot Plug and Removal power protected circuit
- PWM synchronous buck converter Power IC for M.2
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Supports M.2 1.8V/ M.3 3.3V SMB_CLK
- Supports M.2 1.8V/ M.3 3.3V SMB_DATA
- Supports M.3 Dual ports, U.2 Dual ports
- Supports PCIe RefClk0p, RefClk0n & RefClk1p, RefClk1n
- Supports PCIe ePERst0, ePERst1
- D1 Green LED on indicates M.2 NVMe SSD power ready
- D2 RED LED Blinking indicates M.2 SSD active status
