Datasheet

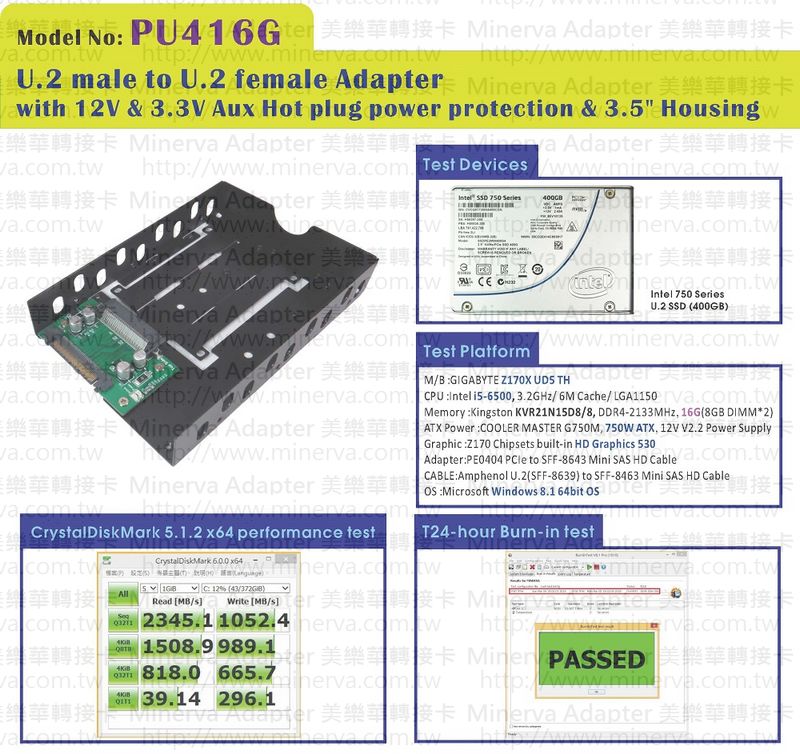

Test report-Intel 750 Series

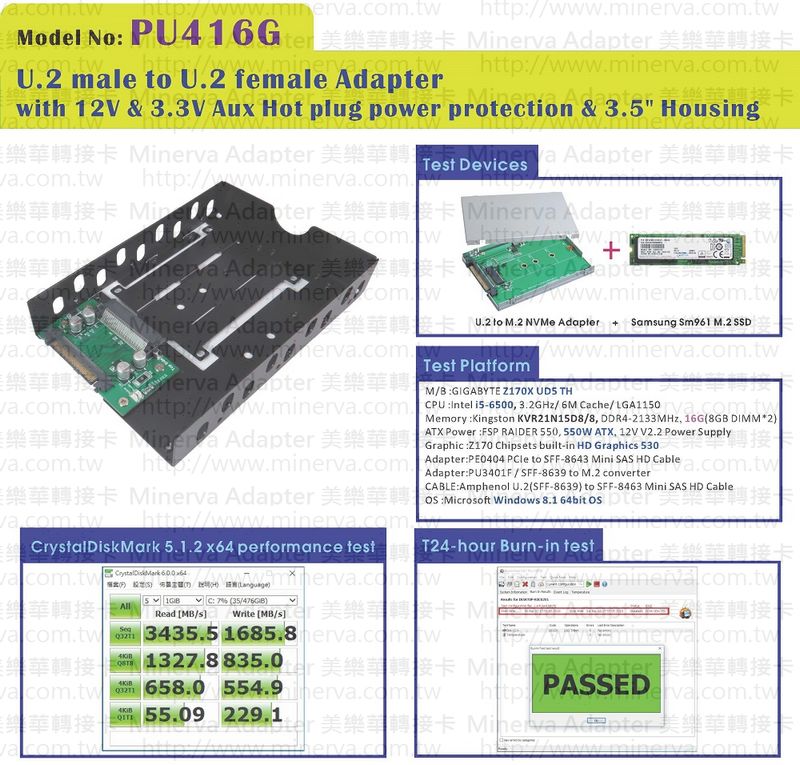

Test report-PU3401F + SM961 SSD

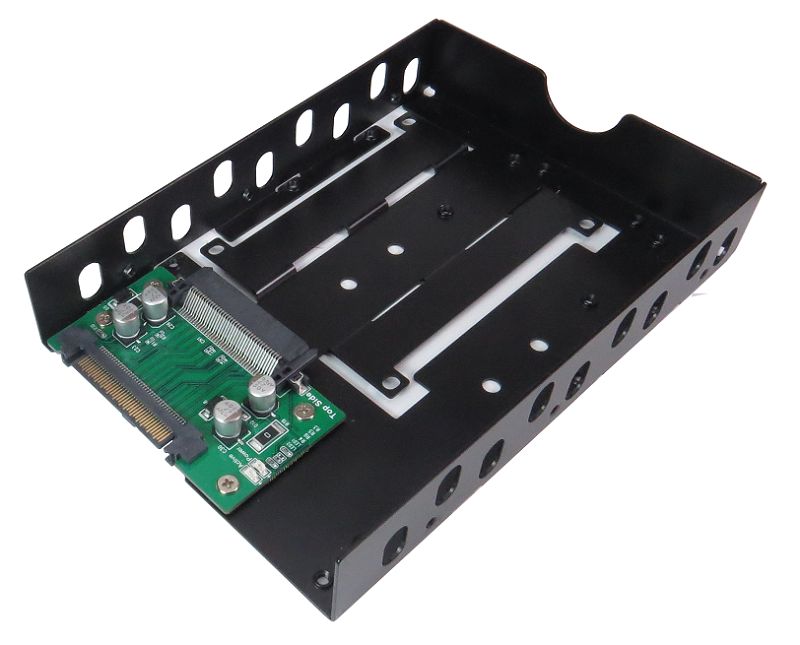

- Build in U.2(SFF-8639) Female connector
- Build in U.2(SFF-8639) Male connector
- 12V Hot Plug and Removal power protected circuit
- 3.3VAux Hot Plug and Removal power protected circuit
- Supports SMB_CLK
- Supports SMB_DATA
- Supports U.2 Daul port design
- Supports PCIe RefClk0p, RefClk0n & RefClk1p, RefClk1n
- Supports PCIe ePERst0, ePERst1
- D1 Green LED on indicates U.2 NVMe SSD power ready
- D2 RED LED Blinking indicates U.2 SSD active status
