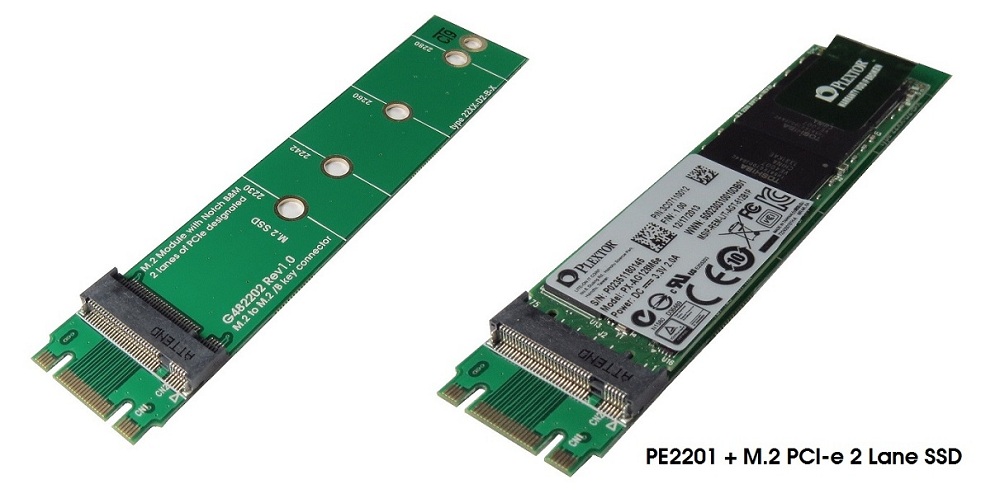

CB963Fx9









specifications



  • 2 lanes of PCI-e designated
  • 4 Layer PCB designed
  • Build in B + M Key M.2 connector
  • Connected PCI-e 2 Lane signals, from M.2 / B key connector to B+M Key notch gold finger
  • PCI Express Card Electromechanical Spec. Rev. 2.0
  • PCI Express M.2 Spec. Rev. 0.7, Ver. 1.0



Application



1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls







support storage device

5

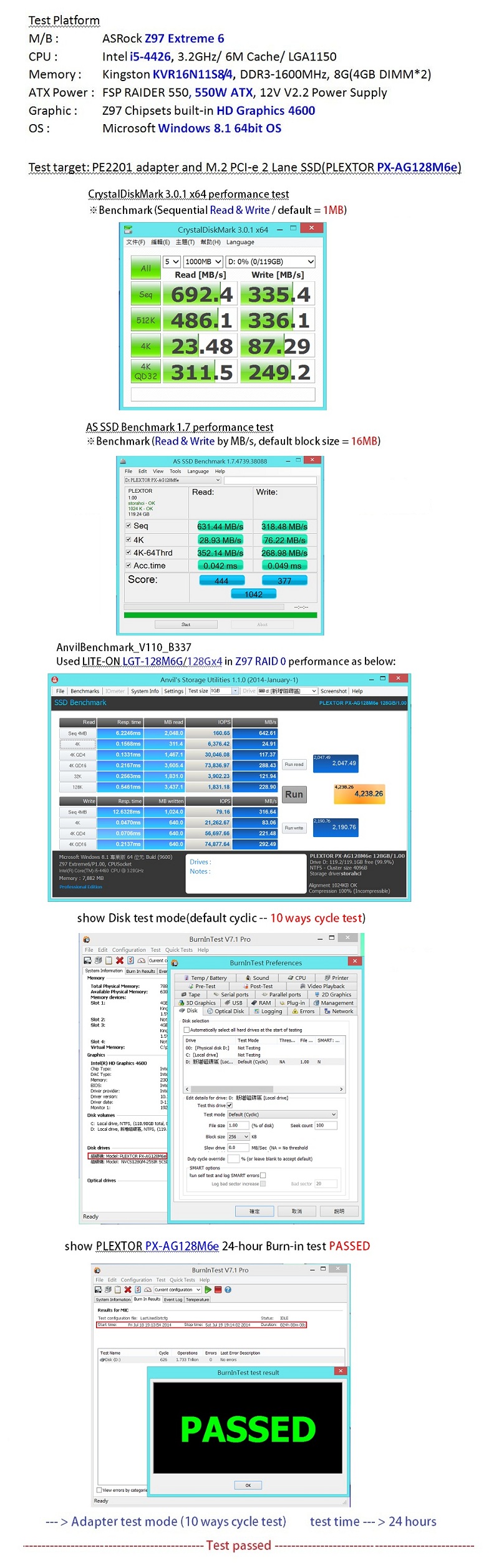

Test repoort Download :



PDF PE2201 performance and burn in test report



PDF PE2201測試報告 (繁體中文)



PDF PE2201 测试报告 (简体中文)







download



Datasheet Download :



PDF   PE2201.PDF

PDF   PE2201 (繁體中文).PDF

PDF   PE2201 (简体中文).PDF
