specifications

PDF

Datasheet















specifications

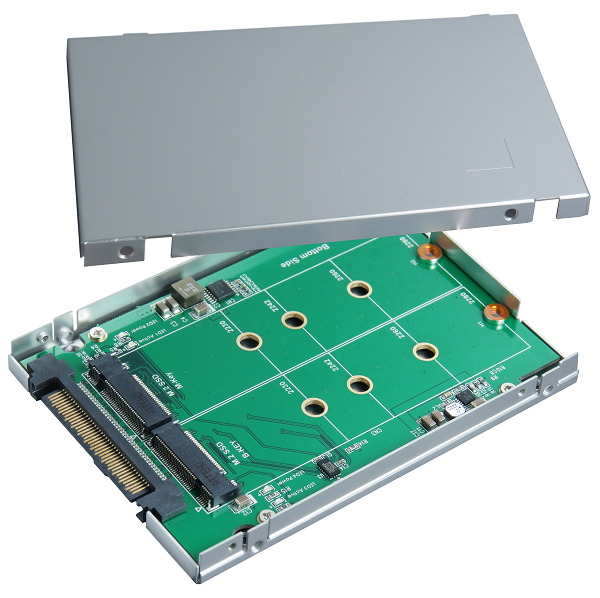

  • Build in SFF-8639 male connector

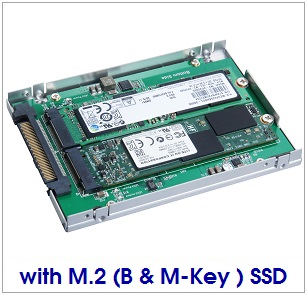

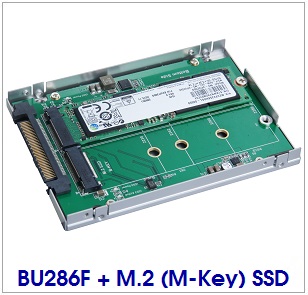

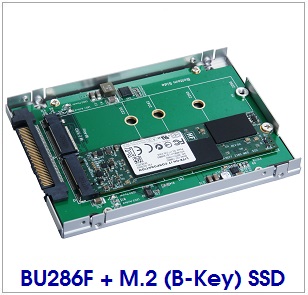

  • Build in M.2 M-key 1-port and M.2 B-key 1-port connector
  • PWM synchronous buck converter Power IC
  • 3A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • D1, D4 Green LED on indicates SSD Power ready
  • D2, D3 Red LED Blinking indicates SSD active status



Application

Application





Application

Application
