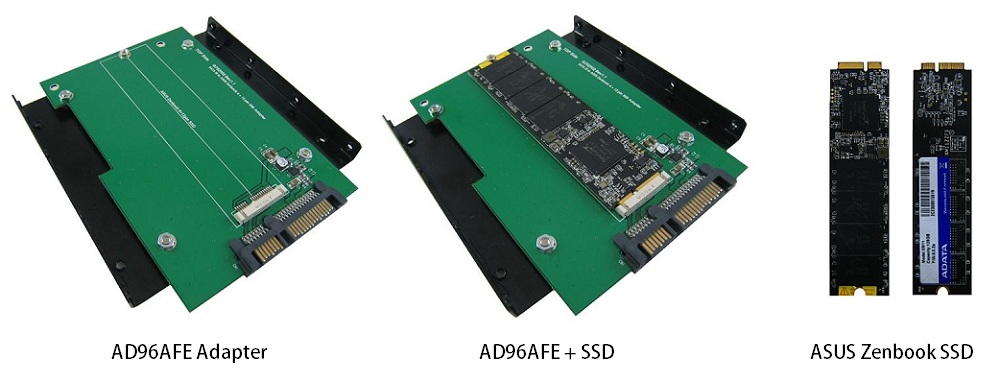

AD96AFE is SATA III to Sandisk U100 SSD Series & ADATA XM11 SSD Series adapter, providing one 7+15pin SATA connector on the host connection and one 6+12pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD96AFE adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

• Fully compliant with SATA revision 3.0
• PWM Power IC / 1.4MHz 5.5V synchronous buck converter
• SSD input voltage: 3.3V ±5%, input max. current: 3A
• Operating temperature – Commercial (0°C to +70°C)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

※ Sandisk U100 Series &compatible Storage

SASA5JK-256G
SASA5JK-128G
SASA5JK-064G

※ ADATA XM11 Series & compatible Storage

ADATA XM11-256GB
ADATA XM11-128GB

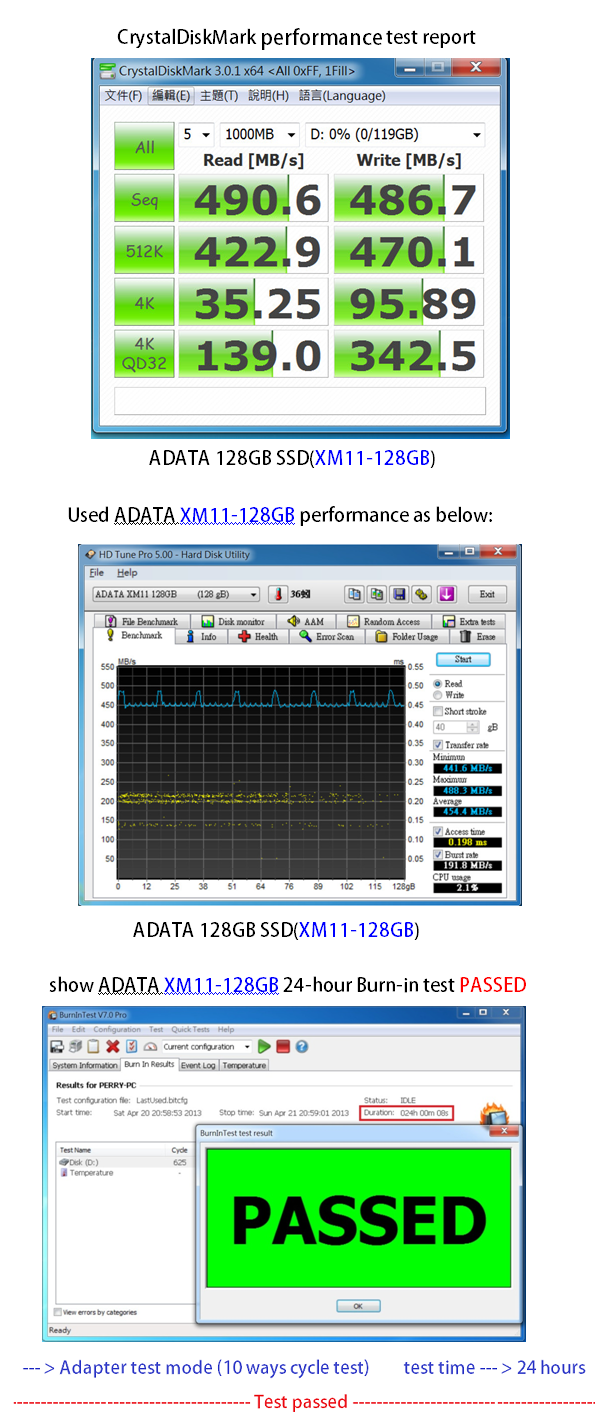

Test repoort Download :

AD96AFE + ADATA XM11-128GB performance and burn in test report

AD96AFE + ADATA XM11-128GB 測試報告 (繁體中文)

AD96AFE + ADATA XM11-128GB 测试报告 (简体中文)

Datasheet Download :

    AD96AFE.PDF

    AD96AFE (繁體中文).PDF

    AD96AFE (简体中文).PDF
