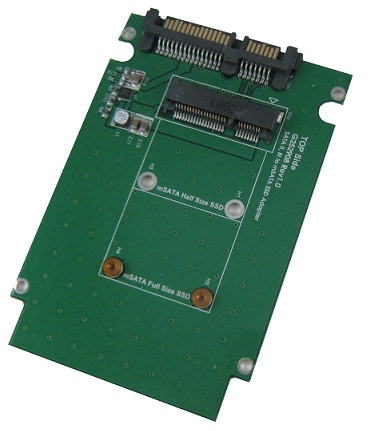

AD963FA9 is SATA to mSATA adapter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD963FA9 adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

• Fully compliant with SATA revision 3.0
• PCI Express Mini Card Electromechanical Specification 1.2
• PWM Power IC / 1.4MHz 5.5V synchronous buck converter
• mSATA input voltage: 3.3V ±5%, input max. current: 3A
• Data transfer rate: 6Gb/s bandwidth
• Support the following form factor mSATA SSD:

Full size: 50.95 mm (L) x 30mm (W)
Half size: 26.8 mm (L) x 30 mm (W)

• Operating temperature – Commercial (0°C to +70°C)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

※ Sandisk U100 Series SSD and compatible Storage Device

※ Samsung PM830 Series SSD and compatible Storage Device

※ Micron RealSSD C400 & C400v mSATA SSD and compatible Storage Device

Test repoort Download :

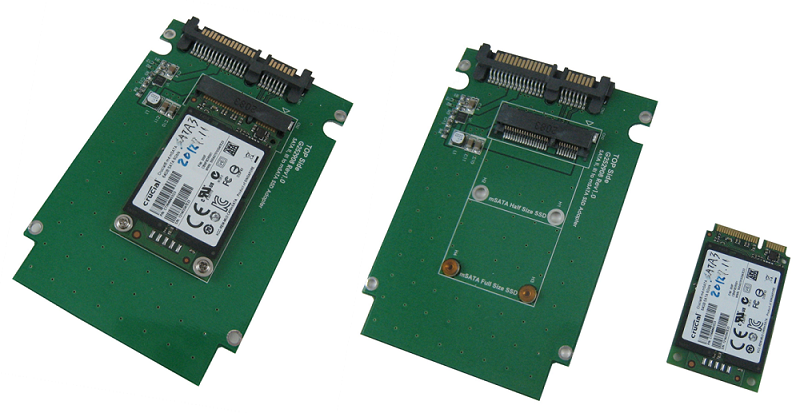

AD963FA9 with Crucial mSATA 64GB M4 CT064M4SSD3 performance and burn in test report

AD963FA9 + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化測試 (繁體中文)

AD963FA9 + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化测试 (简体中文)

AD963FA9 with Runcore mSATA 64GB RCP_V_T060_MC performance and burn in test report

AD963FA9 + Runcore mSATA 64GB RCP_V_T060_MC 效能及老化測試 (繁體中文)

AD963FA9 + Runcore mSATA 64GB RCP_V_T060_MC 效能及老化测试 (简体中文)

Datasheet Download :

AD963FA9 Datasheet.PDF

AD963FA9 Datasheet (繁體中文).PDF

AD963FA9 Datasheet(简体中文).PDF

    AD963FA9.PDF

    AD963FA9(繁體中文).PDF

    AD963FA9(簡體中文).PDF

AD963FA9 assembly guide Download :

     AD963FA9 assembly guide.PDF

    AD963FA9 安裝說明(繁體中文).PDF

    AD963FA9 安装说明(简体中文).PDF
