AD963FA5 / AD963FAH is SATA to mSATA adapter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD963FA5 / AD963FAH adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the mSATA SSD.

• Fully compliant with SATA revision 3.0
• PCI Express Mini Card Electromechanical Specification 1.2
• Power IC PWM / 1.4MHz 5.5V synchronous buck converter
• Provide mSATA SSD input maximum current: 3A
• Data transfer rate: 6Gb/s bandwidth

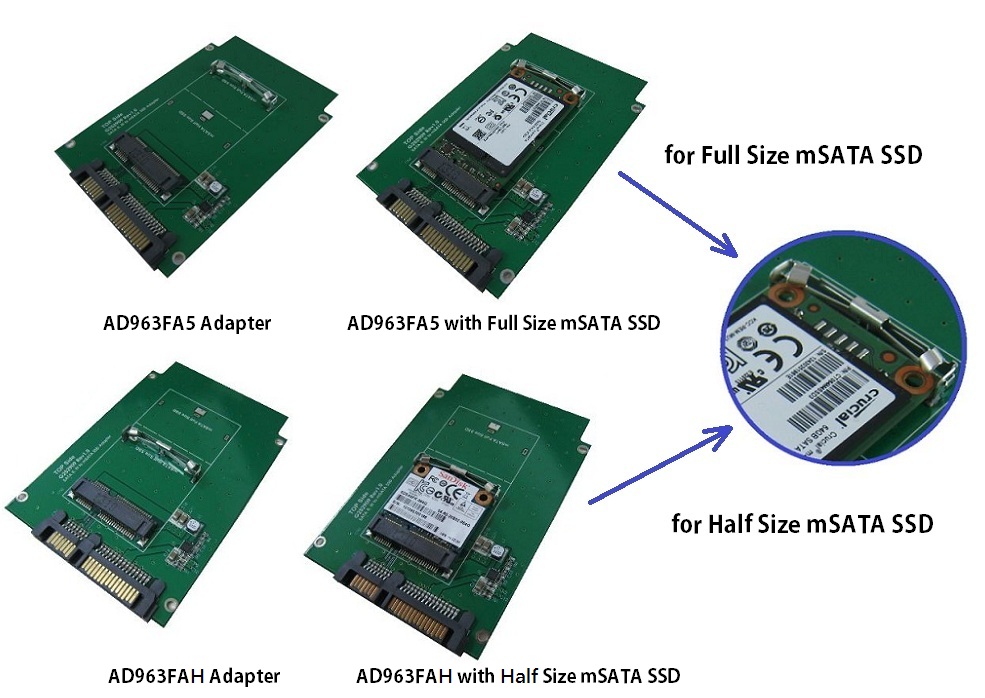

• Support the following form factor mSATA SSD:

Full size: 50.95 mm (L) x 30mm (W)

Half size: 26.8 mm (L) x 30 mm (W)

• Operating temperature – Commercial (0°C to +70°C)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

※ Intel 310, 311, 313, 525 Series mSATA SSD

※ San Disk U100 Series mSATA SSD

※ Samsung PM00, PM810, PM830 Series mSATA SSD

※ Micron RealSSD C400, C400v mSATA, Crucial mSATA

Test Platform

M/B :       ASUS P8P67
CPU :       ntel i5-2500, 3.3MHz/ 6G Cache/ 5GT
Memory :    Kingston KVR1333D3N9K2/4G, DDR3-1333MHz,4G(2GB DIMM*2)
ATX Power :  TC START W500, 500W ATX,12V V2.2 Power Supplier
Graphic :    MSI , R6700 / AMD HD 6700 Series
OS :        Microsoft Windows 7 64bit OS

Test repoort Download :

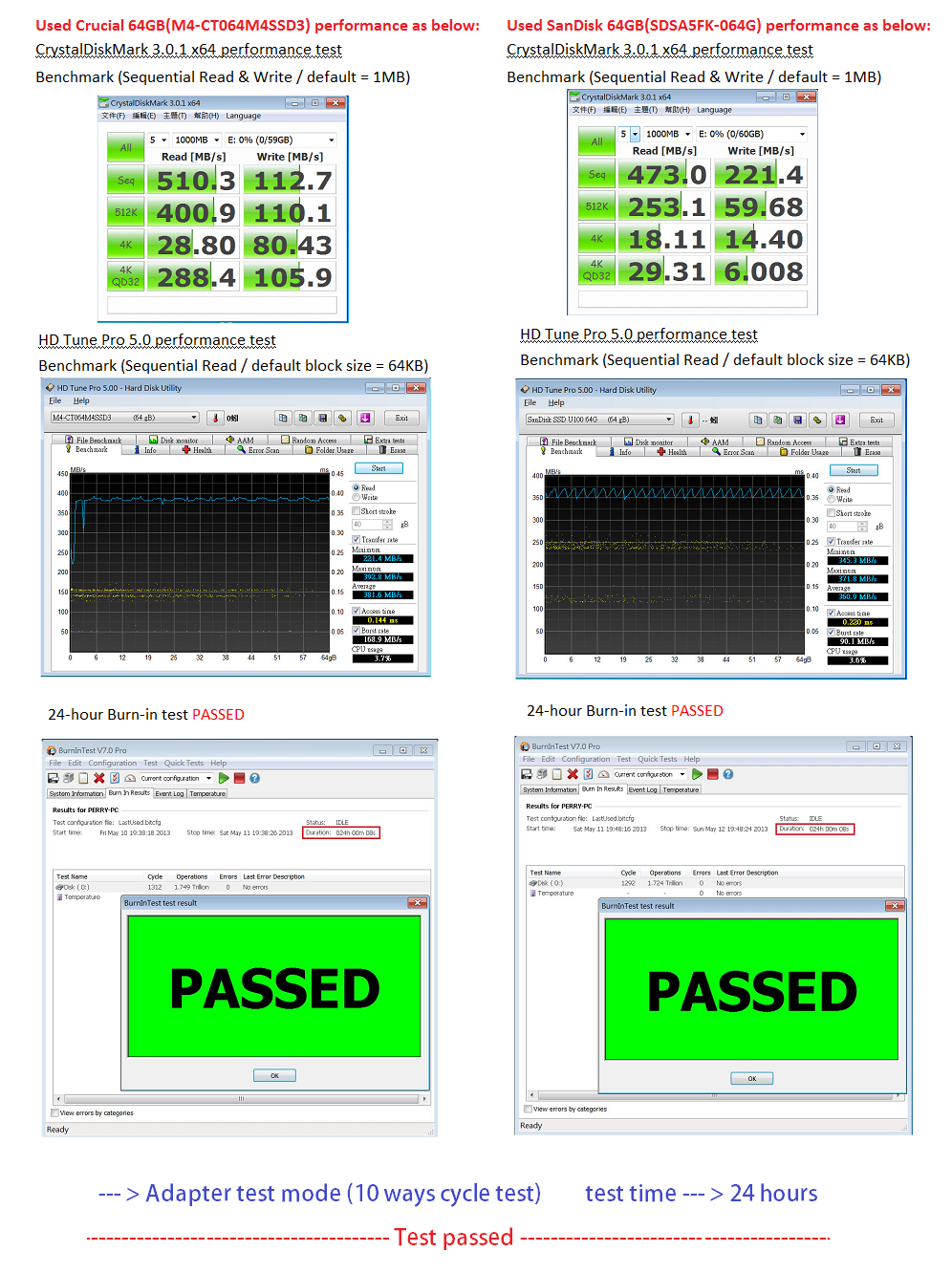

AD963FA5 with Crucial mSATA 64GB M4 CT064M4SSD3 performance and burn in test report

AD963FA5 + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化測試 (繁體中文)

AD963FA5 + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化测试 (简体中文)

AD963FAH with SanDisk 64GB(SDSA5FK-064G) mSATA mini SSDperformance and burn in test report

AD963FAH + SanDisk 64GB(SDSA5FK-064G) mSATA mini SSD 效能及老化測試 (繁體中文)

AD963FAH + SanDisk 64GB(SDSA5FK-064G) mSATA mini SSD 效能及老化测试 (简体中文)

Datasheet Download :

    AD963FA5.PDF

    AD963FA5(繁體中文).PDF

    AD963FA5(簡體中文).PDF

    AD963FAH.PDF

    AD963FAH(繁體中文).PDF

    AD963FAH(簡體中文).PDF

AD963FA5 / AD963FAH assembly guide Download :

     AD963FA5 / AD963FAH assembly guide.PDF

    AD963FA5 / AD963FAH 安裝說明(繁體中文).PDF

    AD963FA5 / AD963FAH 安装说明(简体中文).PDF
