Datasheet

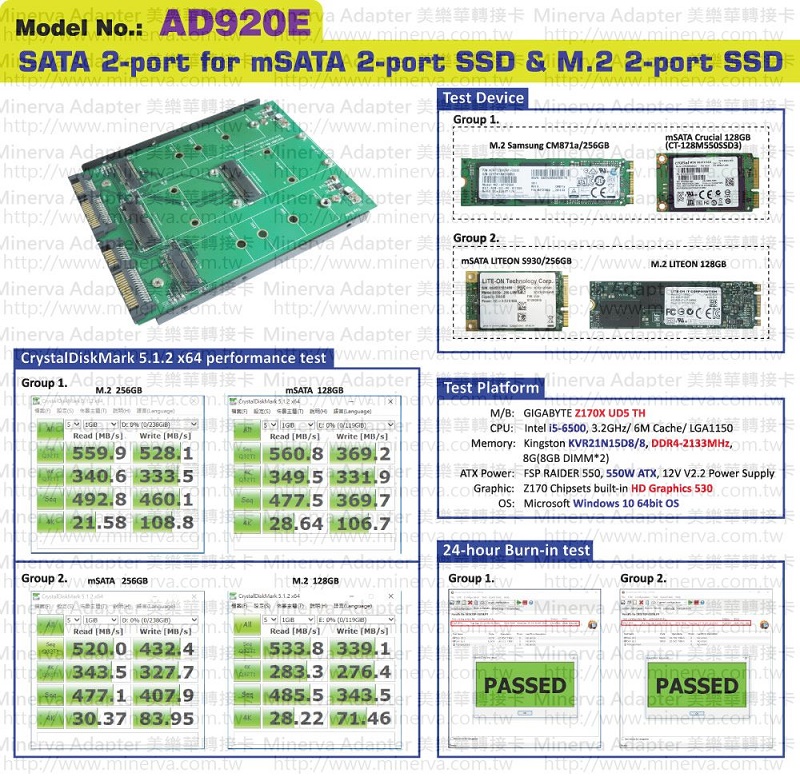

Test report -1 / 256GB M.2 SSD & 128GB mSATA SSD
Test report -2 / 128GB M.2 SSD & 256GB mSATA SSD

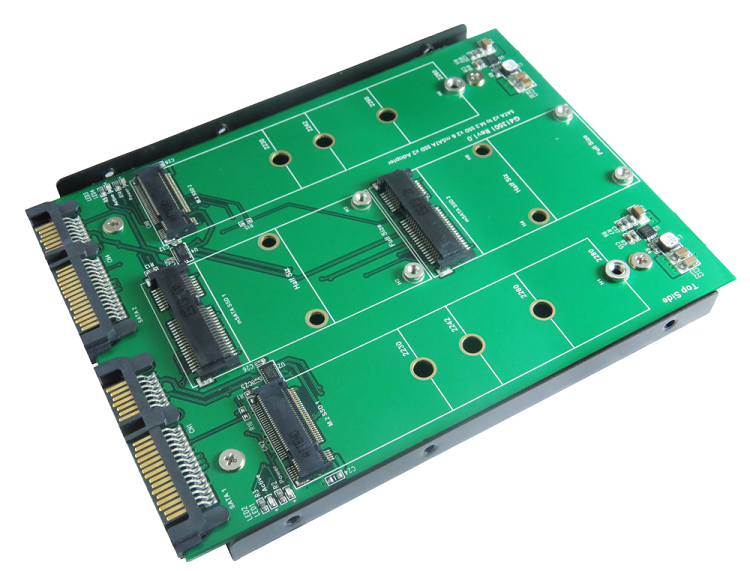

- Build in Mini PCI-e Female x2 connector
- Build in M.2 B-key Female x2 connector
- Provide independent Power for M.2 SSD & mSATA SSD
- PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- LED1,LED4 Green LED on indicates SSD Power ready status
- LED2,LED3 Red LED Blinking indicates SSD active status
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)
