Standard 2.5", 9.5mm(H) Form Factor
Support a SATA host & mSATA SSD device

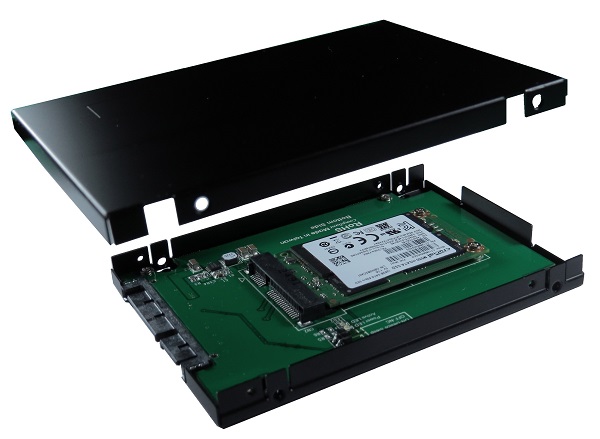

mSATA to SATA III Module
Green LED indicates the M.2 SSD's power status
Red LED indicates the M.2 SSD's active status
Support SATA Reversion 3.2
PCI Express Mini Card Electromechanical Spec. 1.2
PCI-E Card Electromechanical Specification Revision 1.1
Support SFF-8201 for Form Factor of 2.5" Disk Drives
PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)
※ Sandisk U100 Series SSD and compatible Storage Device
※ Samsung PM830 Series SSD and compatible Storage Device
※ Micron RealSSD C400 & C400v mSATA SSD and compatible Storage Device
Datasheet Download :
AD917F.PDF

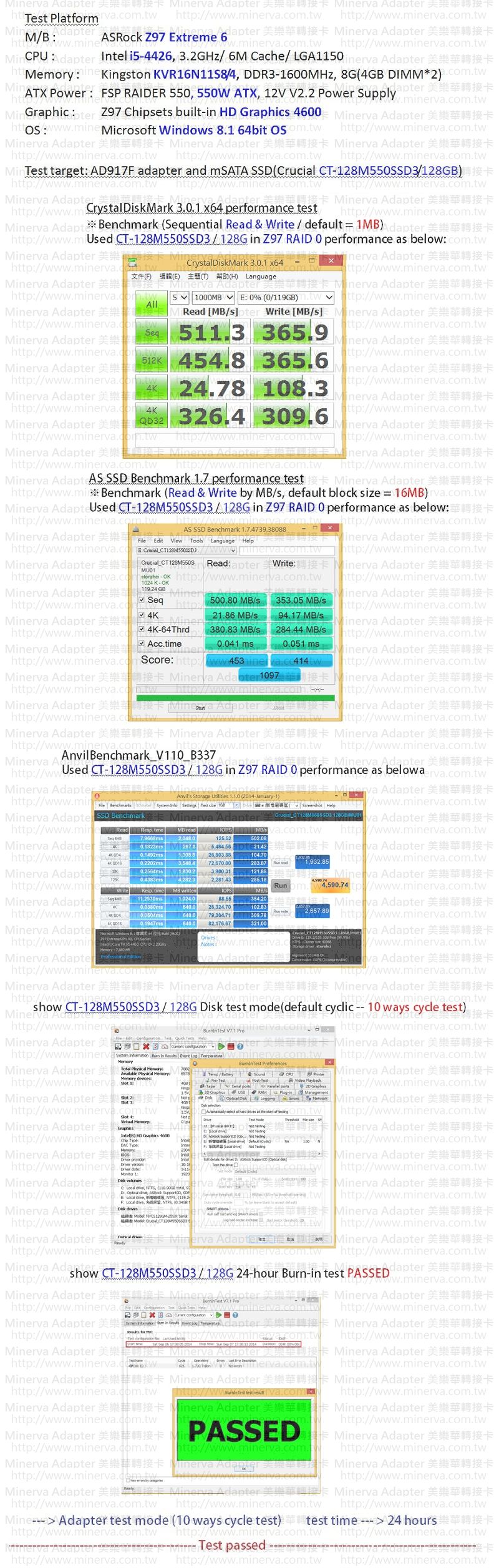

Test report Download :
assembly guide Download :
