Standard 2.5", 9.5mm(H) Form Factor
Support a SATA host & M.2 NGFF SSD device

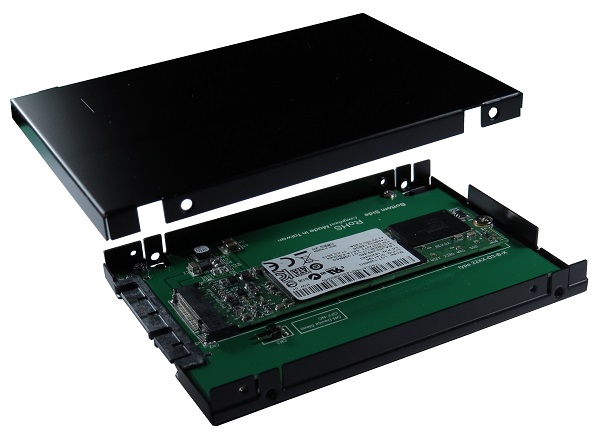

M.2 (NGFF) to SATA III Module
Support SATA Rev. 3.2 DEVSLP function
Green LED indicates the M.2 SSD's power status
Red LED indicates the M.2 SSD's active status
Support SATA Reversion 3.2
Compliant with PCI Express M.2 Spec. Version 1.0
Support SFF-8201 for Form Factor of 2.5" Disk Drives
PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
 SSD.jpg){kind=small}
- Intel 530 Series M.2 SSD & compatible Storage
- Sandisk X110 M.2 SSD & compatible Storage
- Micron M500 Series M.2 SSD & compatible Storage
Datasheet Download :
AD916F.PDF

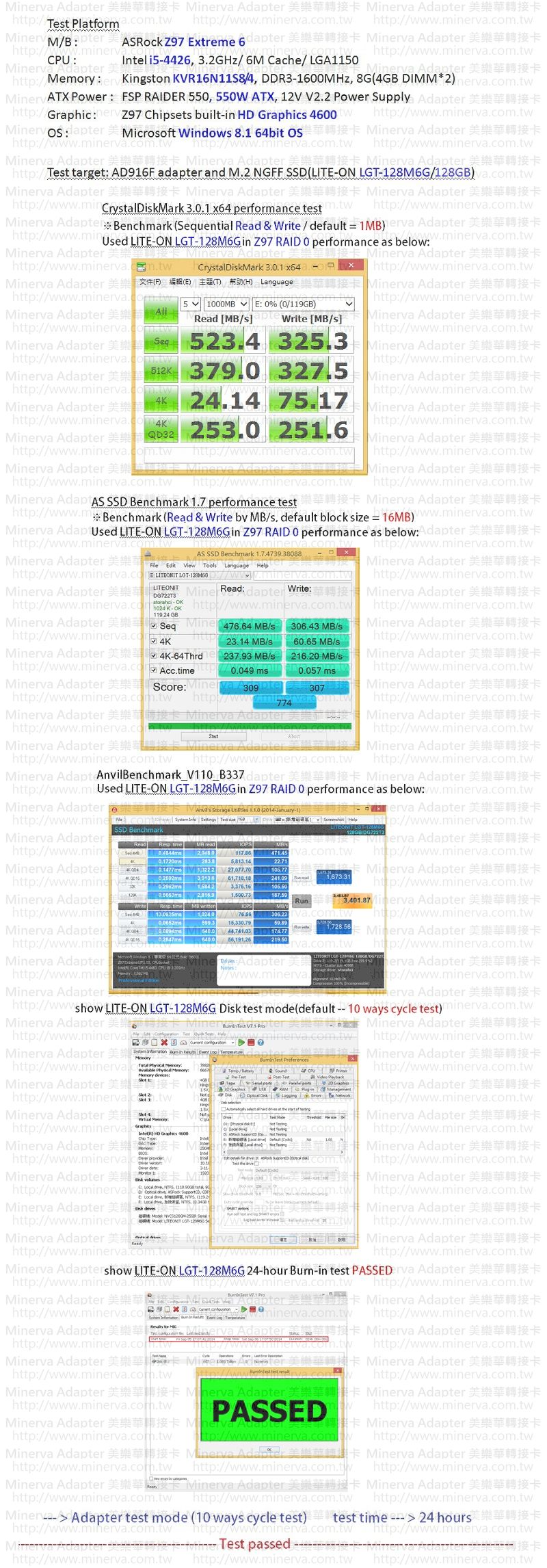

Test report Download :
assembly guide Download :
