CB963Fx9







Avstract



AD909A is SATA III to M.2(NGFF) Storage adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.



AD909A adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.



specifications



M.2 (NGFF) to SATA III Module
DEVSLP Assignment on Standard SATA connector

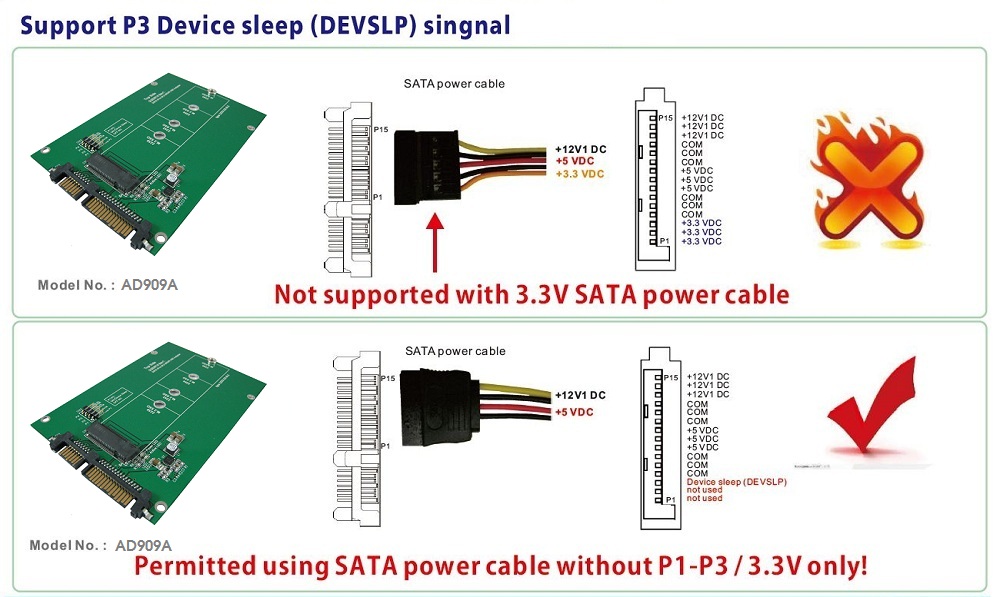

SATA Power Pin 3 definition for Device Sleep Pin
DEVSLP Assignment on M.2 SSD connector
M.2 SSD pin 38 Device Sleep
Connected SATA P3 to M.2 pin 38
Support M.2 SSD P56 MFG DATA pin
Support M.2 SSD P58 MFG Clock pin
Green LED indicates the M.2 SSD's power status
Red LED indicates the M.2 SSD's active status

Support SATA Reversion 3.2
Compliant with PCI Express M.2 Spec. Version 1.0
PWM synchronous buck converter Power IC
3A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV



Application

Application



Application

Application



Application

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls



support storage device

5



Test repoort Download :

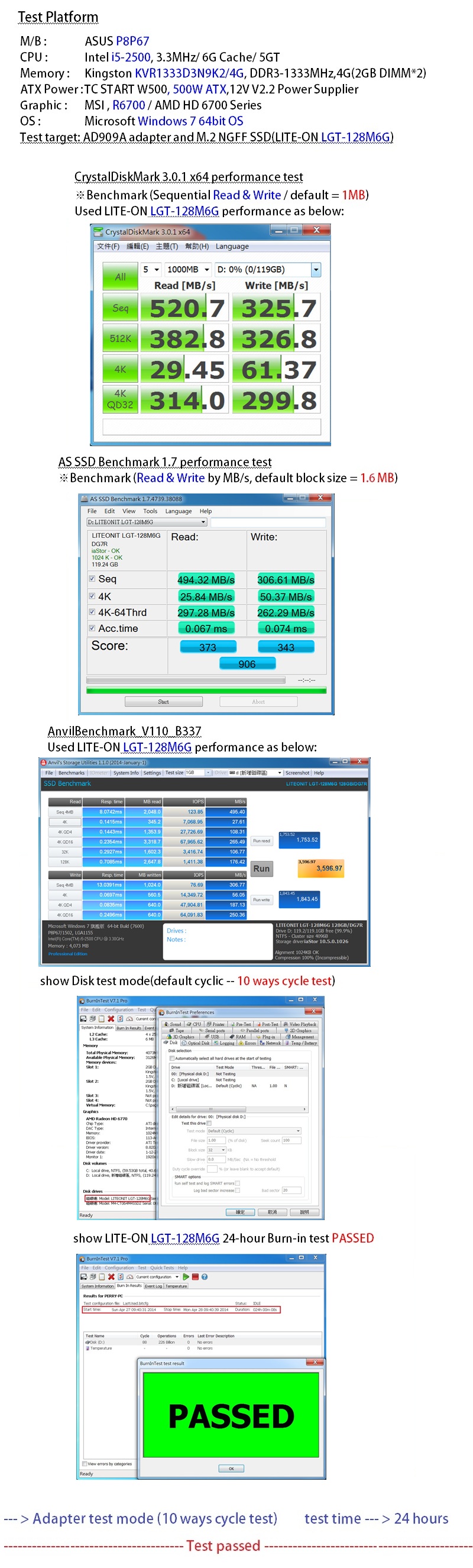

PDF AD909A + LITE-ON LGT-128M6G performance and burn in test report



PDF AD909A + LITE-ON LGT-128M6G 測試報告 (繁體中文)



PDF AD909A + LITE-ON LGT-128M6G 测试报告 (简体中文)



support storage device

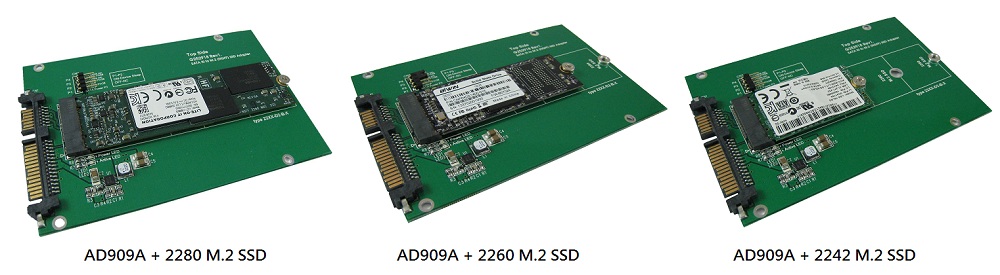

  • Intel 530 Series M.2 SSD & compatible Storage
  • Sandisk X110 M.2 SSD & compatible Storage
  • Micron M500 Series M.2 SSD & compatible Storage







download



Datasheet Download :



PDF    AD909A.PDF

PDF    AD909A (繁體中文).PDF

PDF    AD909A (简体中文).PDF


AD909A assembly guide Download :



PDF     AD909A assembly guide.PDF

PDF    AD909A 安裝說明(繁體中文).PDF

PDF    AD909A 安装说明(简体中文).PDF
