AD908A module is M.2(NGFF) adapter for SATA III 7-pin signal, providing 67pin B+M key dual notch gold finger. It allows AD908A can be inserted into M.2 socket 2 or socket 3 connector either, and a 7-pin SATA connector for storage. When assembled, suitable for a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Win 8, Linux, Unix and so on.
- Fully compliant with SATA revision 3.2
- Fully compliant with PCI Express M.2 Specification Version 1.0
- Data transfer rate: 6Gb/s bandwidth

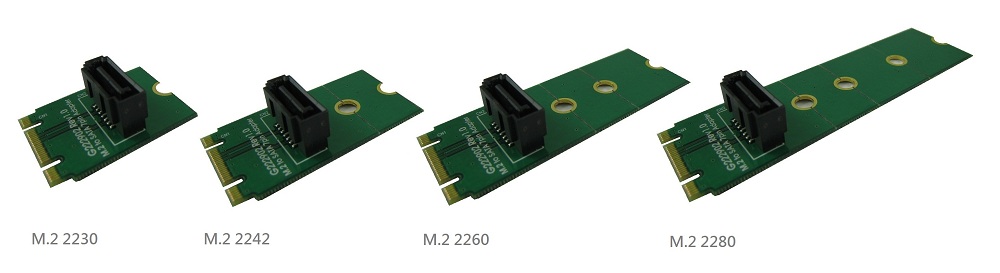

- Suport the following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Datasheet Download :
AD908A.PDF
