AD903D is SATA III to M.2(NGFF) Storage adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD903D adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

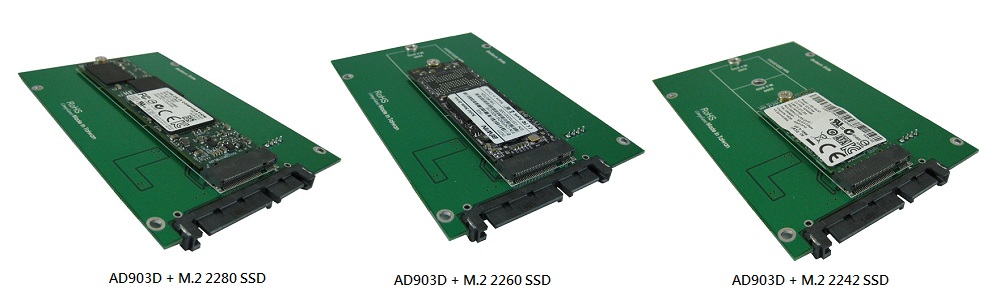

M.2 (NGFF) to SATA III Module

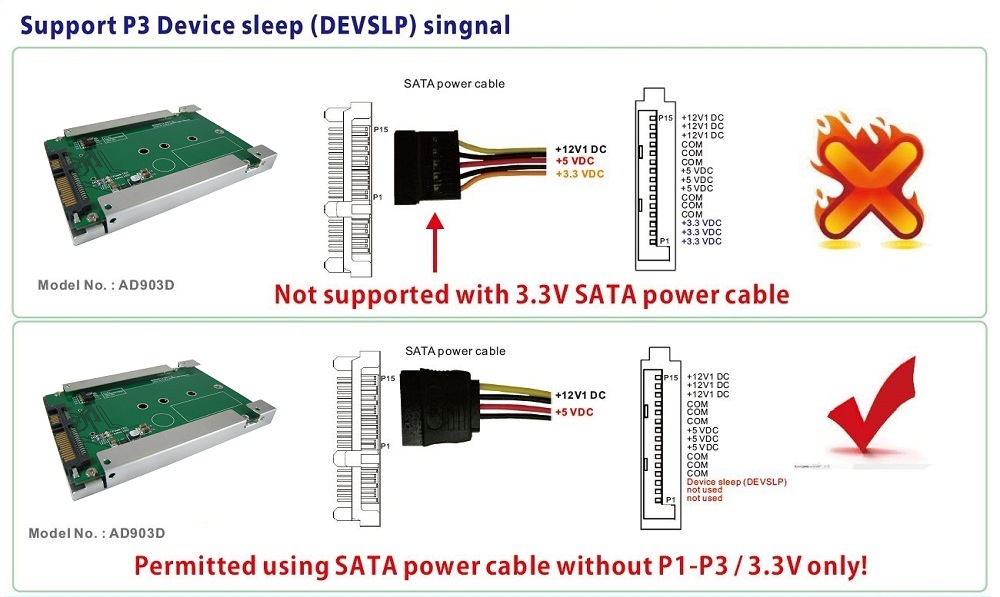

DEVSLP Assignment on Standard SATA connector
SATA Power Pin 3 definition for Device Sleep Pin
DEVSLP Assignment on M.2 SSD connector
M.2 SSD pin 38 Device Sleep
Connected SATA P3 to M.2 pin 38
Support M.2 SSD P56 MFG DATA pin
Support M.2 SSD P58 MFG Clock pin

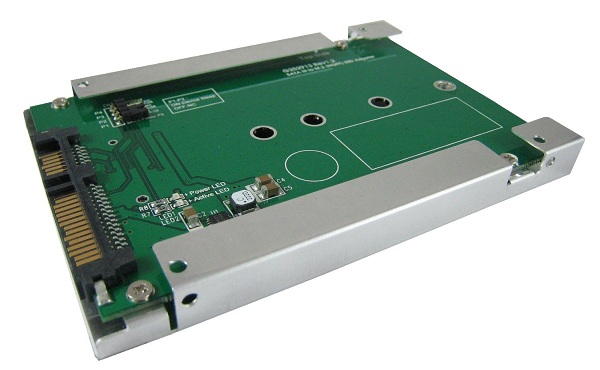

Green LED indicates the M.2 SSD's power status
Red LED indicates the M.2 SSD's active status

Support SATA Reversion 3.2
Compliant with PCI Express M.2 Spec. Version 1.0
PWM synchronous buck converter Power IC
3A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

Test repoort Download :

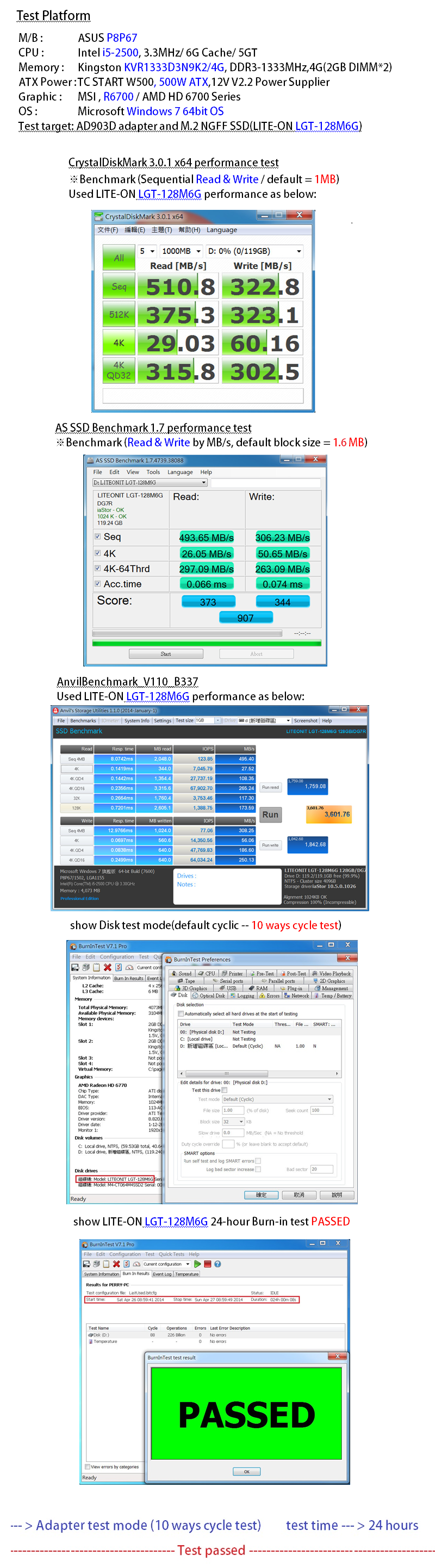

AD903D + LITE-ON LGT-128M6G performance and burn in test report
