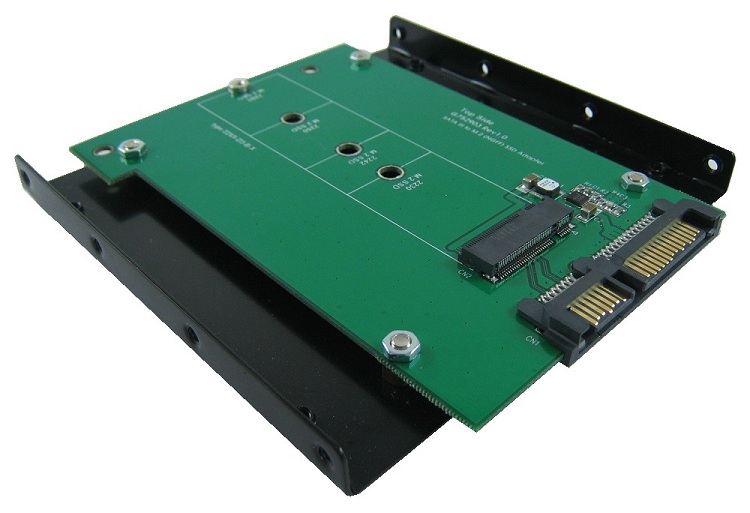

AD901B/AD901E is SATA III to M.2(NGFF) Storage adapter, providing one 7+15pin SATA connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD901B/AD901E adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

• Fully compliant with SATA revision 3.1
• Fully compliant with PCI Express M.2 Specification Version 1.0
• PWM Power IC / 1.4MHz 5.5V synchronous buck converter
• M.2 SSD input voltage: 3.3V ±5%, input max. current: 3A
• Data transfer rate: 6Gb/s bandwidth

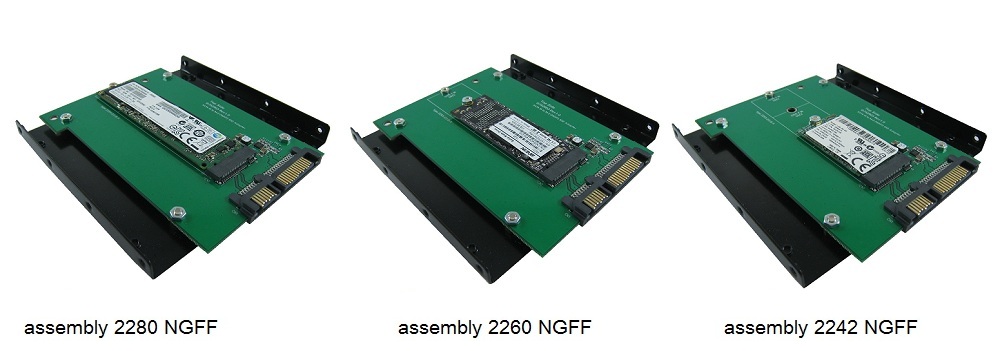

• Suport the following form factor M.2(NGFF) SSD:

Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

Test repoort Download :

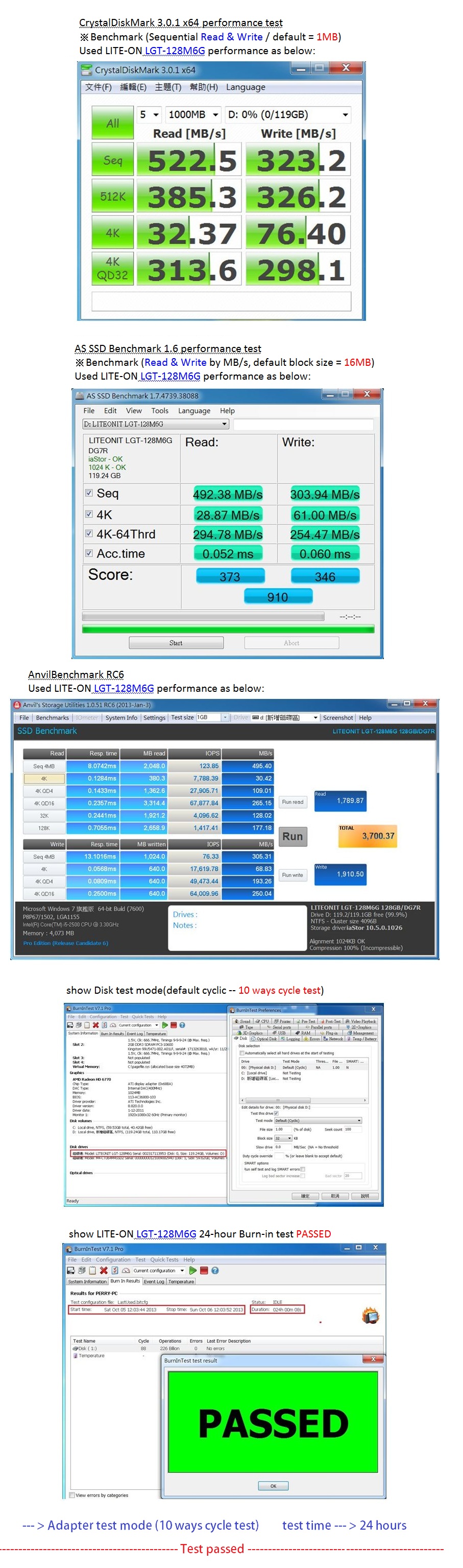

AD901E + LITE-ON LGT-128M6G performance and burn in test report

AD901E + LITE-ON LGT-128M6G 測試報告 (繁體中文)

AD901E + LITE-ON LGT-128M6G 测试报告 (简体中文)

• Intel 530 Series M.2 SSD & compatible Storage
• Sandisk X110 M.2 SSD & compatible Storage

• Micron M500 Series M.2 SSD & compatible Storage

Datasheet Download :

AD901E Datasheet.PDF

AD901E (繁體中文) Datasheet.PDF

AD901E (简体中文) Datasheet.PDF

    AD901E.PDF

    AD901E (繁體中文).PDF

    AD901E (简体中文).PDF


AD901E assembly guide Download :

     AD901E assembly guide.PDF

    AD901E 安裝說明(繁體中文).PDF

    AD901E 安装说明(简体中文).PDF
