CB963Fx9











specifications

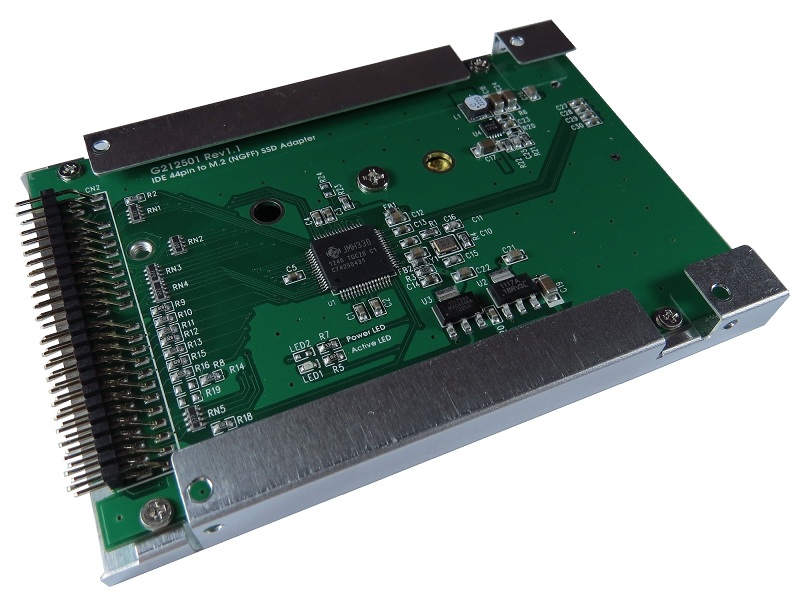

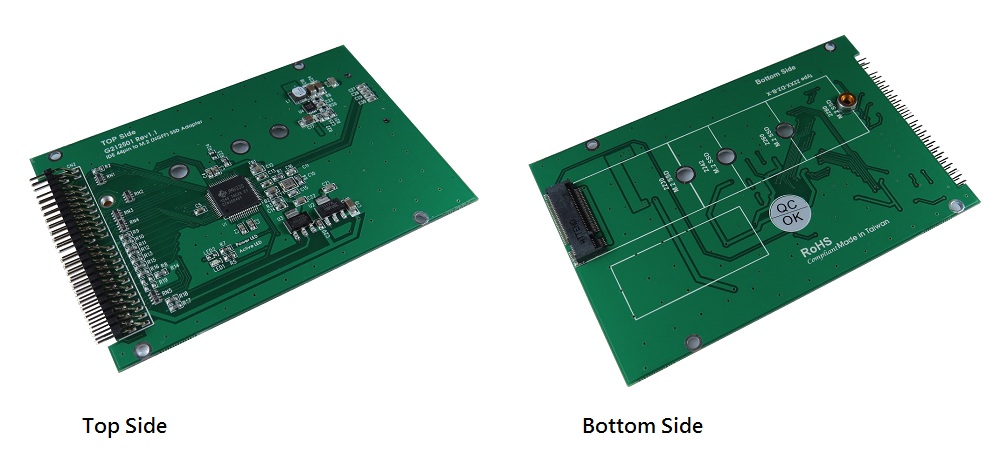

  • M.2(NGFF) SSD to IDE 44-pin Embedded Module
  • Green LED indicates the M.2SSD's Power status
  • PWM synchronous buck converter Power Icr
    3A maximum output current
    Short circuit protection
    In-rush current suppression
    Thermal shutdown protection
    ESD HBM (Human Body Mode)/2KV
  • Support SATA Reversion 3.2
  • Fully compliant with PCI Express M.2 Spec. Ver. 1.0
  • Support ATA/ATAPI-7 specification
  • ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6





Application

Application





Application

Application



Application

Application

Application

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

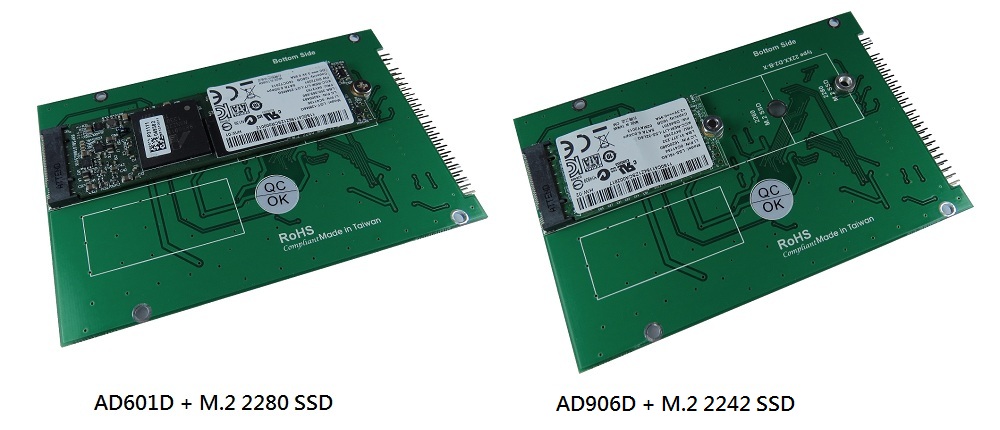

support storage device

5

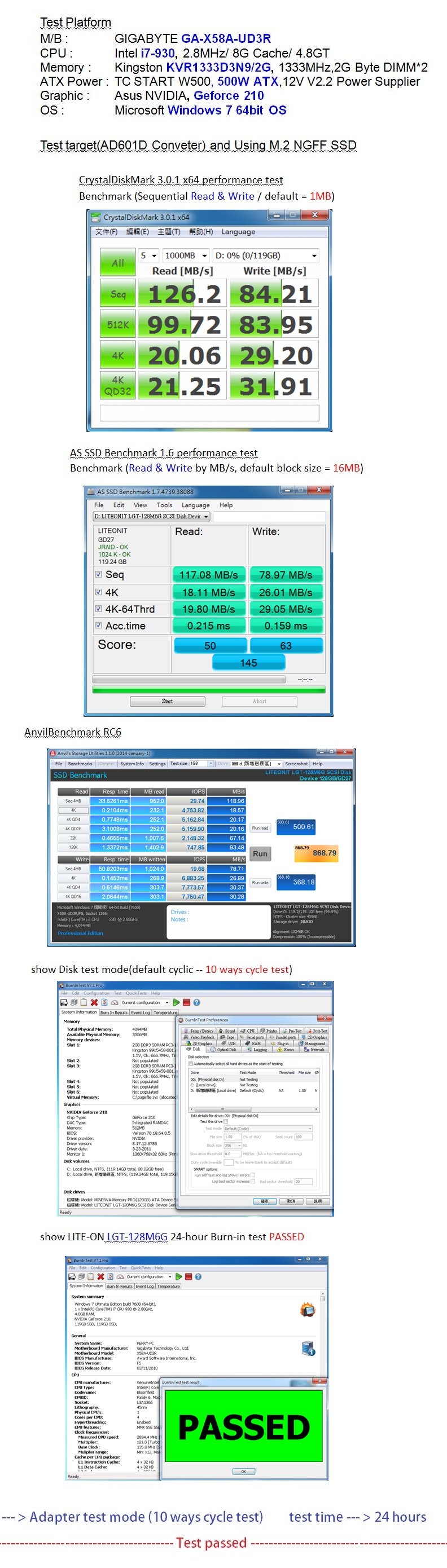

Test repoort Download :



PDF AD601D performance and burn in test report



PDF AD601D 測試報告 (繁體中文)



PDF AD601D 测试报告 (简体中文)





support storage device





download



Datasheet Download :



PDF    AD601D.PDF

PDF    AD601D (繁體中文).PDF

PDF    AD601D (简体中文).PDF
